| 产地 | 陕西.西安 |
|---|---|
| 是否进口 | 否 |
| 额定功率 | 0.55KW |
| 极数 | 12极 |
| 类型 | 磁滞同电动机 |
| 品牌 | XD |
| 型号 | CJ6系列电动机操动机构 |
| 加工定制 | 否 |
CJ6系列电动操动机构
CJ6 type of motor operating mechanism
1产品概述General decription of the product
CJ6系列电动机操动机构是我公司自主开发的隔离开关用电动机操动机构。可用于40.5kV～1100 kV户外高压隔离开关和接地开关分、合闸操动。
CJ6 type motor operating mechanism is independently developed by our company and used for opening and closing operation of 40.5kV～1100 kV outdoor high voltage DS and ES.
其中CJ6B主要用于操动40.5kV～72.5 kV户外高压隔离开关和接地开关；CJ6A主要用于操动252kV～550 kV户外高压隔离开关和接地开关；CJ6U主要用于操动550 kV及以上特高压隔离开关和接地开关。
Among them, CJ6B is mainly used for operating 40.5kV～72.5 kV outdoor high voltage DS and ES; CJ6A is mainly used for operating 252kV～550 kV outdoor high voltage DS and ES; CJ6U is mainly used for operating 550 kV and above UHV DS and ES.
2 产品外形及尺寸Outline and dimensions
3 结构特点：Structural Features
CJ6系列机构结构主要分为3部分：机构箱、驱动机构以及面板装配。
CJ6 type of mechanism mainly divided into three parts: mechanism box, driving mechanism and panel assembly.

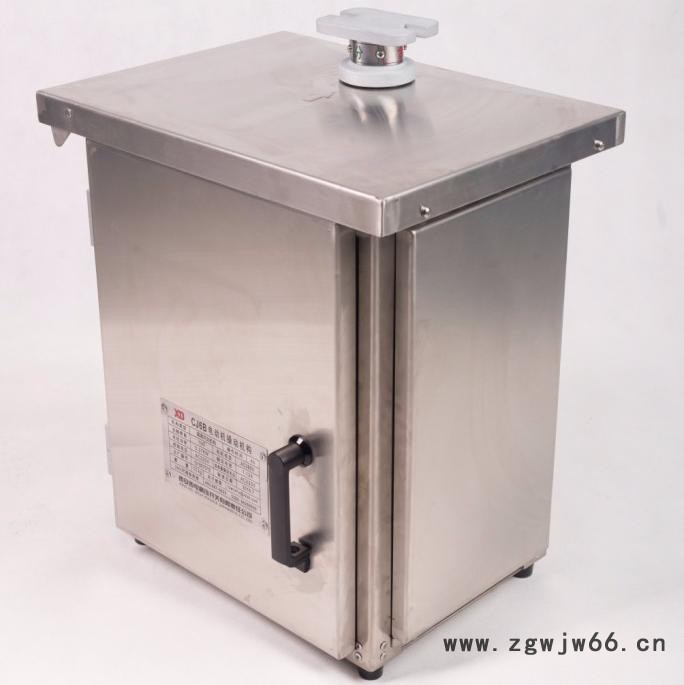

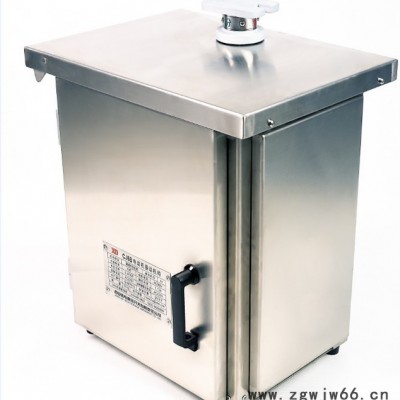

l 其中机构箱箱体采用优质304不锈钢铆接结构、外形美观，具有可靠防水、防尘、防腐及防锈蚀，单层门机构箱外壳防护等级为IP55级；双层门机构箱外壳防护等级为IP66级；
The mechanism box adopts excellent 304 stainless steel reveting constructions with good-looking appearance. It is water-proof, dust-proof, anticorrosion and anti-rusted. The enclosure protection level of the mechanism box with single-layer door is IP55; the enclosure protection level of the mechanism box with double-layer door is IP66.

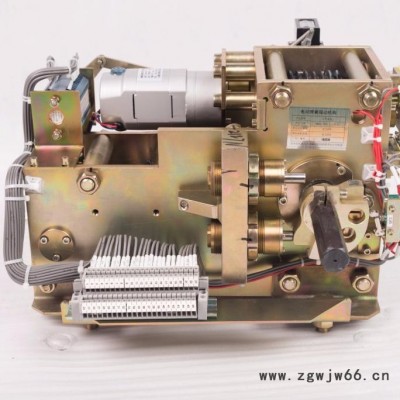

l 驱动机构部分主要由电动机、两级蜗轮减速器和控制回路组成。电动机的动力通过两级蜗轮蜗杆减速，传给输出轴，从而带动隔离开关或接地开关实现分闸、合闸动作。机构的合闸、分闸及输出转角、操作时间都是靠行程(微动)开关来控制实现。
The driving mechanism part is consist of motor, two-class turbine reducer and control circuit. The driving force of the motor will transmit to output shaft by two-class turbine reducer, then to drive DS or ES to realize opening and closing operation. The opening and closing of the mechanism, output angle and operating time are all realized by the stroke switch(microswitch).
l 面板装配即元器件装配，元器件全部装配在一块操作面板上，各种操作按钮及开关位置方便直观。
l Panel assembly means components assembly, which means all the components should be assembled on one operating panel, and all kinds of operation button and switch positions are easy to be seen.
4.技术参数：Technical Data
CJ6A主要参数：(特殊要求也能满足)
CJ6A main data: (even can satisfy the special requirement)
| 序号 No. | 项目 Items | 单位 Unit | 数据 Data | |
| 1 | 输出扭矩 Output torque | N.m | 300-1220 | |
| 2 | 输出转角 Output angle | V | 90° 100° 135° 180° | |
| 3 | 额定电压 Rated voltage | 电动机电压 Motor voltage | V | AC380、DC220/110 |
| 控制回路 Control circuit | DC220/110、AC220 | |||
| 4 | 电动机额定功率 Motor rated power | W | 550 750 | |
| 5 | 电动机额定电流 Motor rated current | A | 1.55 | |
| 6 | 电动分、合闸时间 Motor opening and closing time | S | 4、8、9 12 | |
| 7 | 机构重量 Weight of mechanism | kg | 75 | |
CJ6B主要参数：(特殊要求也能满足)
CJ6A main data: (even can satisfy the special requirement)
| 序号 No. | 项目 Items | 单位 Unit | 参数 Data | |
| 1 | 输出扭矩 Output torque | N.m | 200-700 | |
| 2 | 输出转角 Output angle | V | 90°100°180° | |
| 3 | 额定电压 Rated voltage | 电动机电压 Motor voltage | V | AC380、DC220/110 |
| 控制回路 Control circuit | DC220/110、AC220 | |||
| 4 | 电动机额定功率 Motor rated power | W | 370 | |
| 5 | 电动机额定电流 Motor rated current | A | 1.3 | |
| 6 | 电动分、合闸时间 Motor opening and closing time | S | 4、8 | |
| 7 | 机构重量 Weight of mechanism | kg | 55 | |
CJ6U主要参数：(特殊要求也能满足)
CJ6A main data: (even can satisfy the special requirement)
| 序号 No. | 项目 Items | 单位 Unit | 参数 Data | |
| 1 | 输出扭矩 Output torque | N.m | 2310 | |
| 2 | 输出转角 Output angle | V | 180° | |
| 3 | 额定电压 Rated voltage | 电动机电压 Motor voltage | V | AC380 |
| 控制回路 Control circuit | AC220 | |||
| 4 | 电动机额定功率 Rated power of motor | W | 750 | |
| 5 | 电动机额定电流 Rated current of motor | A | 2.26 | |
| 6 | 电动分、合闸时间 Opening and closing time of motor | S | 18-32 | |
| 7 | 机构重量 Weight of mechanism | kg | 120 | |
5 应用成果：Application:
CJ6系列电动操动机构每年应用于国内外近200个工程项目，产量近3000台，随开关本体远销至白俄罗斯、委内瑞拉、菲律宾、埃及、埃塞俄比亚等多个国和地区。
CJ6 motor operating mechanism has been applied to nearly 200 projects in domestic and abroad every year, with nearly 3000 annual output. The mechanisms together with its main body switchgear have been sold to the republic of Belarus, Venezuela, the Philippines, Egypt, Ethiopia and many other countries and places.
