| 材质 | 涤纶 |
|---|---|
| 产地 | 江苏 |
| 化学成份 | 纤维丝 |
| 类型 | 过滤棉 |
| 适用对象 | 空气 |
| 适用范围 | 烤漆房喷漆房 |
| 性能 | 防火,防水,耐低温,耐碱,耐酸 |
| 用途 | 防尘、除尘,防水,干燥过滤,空气过滤,水过滤,油气分离 |
| 原产地 | 中国 |
| 执行质量标准 | 国标 |
| 品牌 | HSJY |
| 质量认证 | 有害物质RoHS |

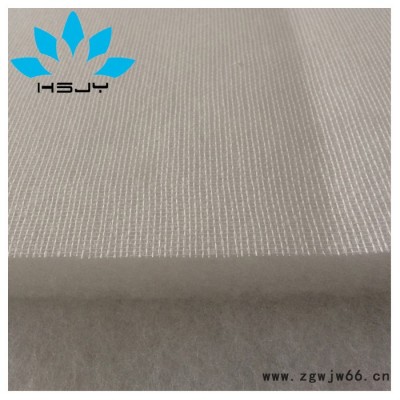

喷房顶篷棉过滤棉
Spray Booth Ceiling Filter Media
产品特性

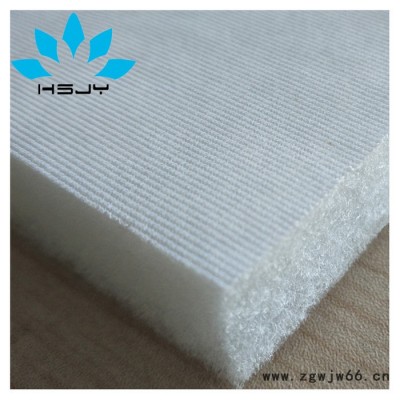

·采用抗断裂的有机合成纤维构成的高性能热熔法加工而成；递增结构，利用逐渐加密多层技术，即往纯净空气方向的纤维密度逐渐增大，较高过滤效率，可根据尘埃大小，被阻挡在不同密度的层次，更有效的容纳较多的尘埃。
·粘性处理，滤料经过充分浸胶，因粘剂完全渗透介质而使尘埃粒子无法通过，让全面过滤的空气气流均匀扩散，形成层流状态，达到较好的喷涂效果。

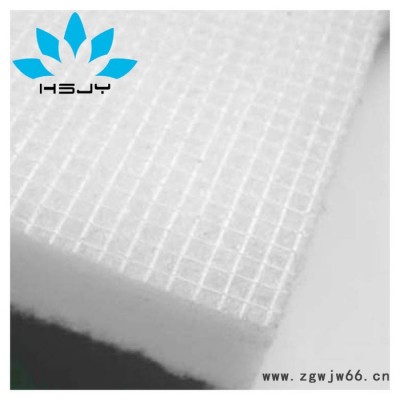

·滤网的出风面特别致密，还增加了一层方格织网加强定型,这种结构使滤料保持较高的过滤效率和容尘量 ，还可以延长滤料的使用寿命，在使用C-600G和C-560G时，除了可保证良好的空气质量外，由于滤料本身阻力相对较低，因此还节约系统运行成本。
·滤料有全粘性、表面粘性、干性处理可供客户选择。
·符合欧洲和美国防火分类标准DlN53438-F1，UL900－class2；
Speciality:
It is made from the break organic synthesis fiber in high-powered high melt way; Gradual structure, Use the technology which encrypts gradually the multi-layered; The fiber density increases gradually toward pure air; high filter efficiency; May according to the dust size, prevent them in the different density level; it accommodates many dust more effectively.
Coherent processing, filtering material to pass through soaks the rubber fully, Fully imgrenated media with adhesive treatment makes dust particles unable to pass; uniform diffusion forms laminar flow to have perfect paint spray finish;
The wind surface of the mesh is specially compact, and also put a fishing net to strengthen it ; this structure make the filtering material keep the high filtering efficiency and large dust holding capacity; even more ,it can extend the working life; When uses C-600G and C-560G, besides can assure the good air quality, because of low resistance of the material, it also saves the systems operation cost.
It is at the customers’ choice that the material have the entire coherency, the surface viscosity, dry processing
Conform to European and American classifications for nonflammability.(e.g. DIN53438-F1,UL900-class 2 with flameout)
用途

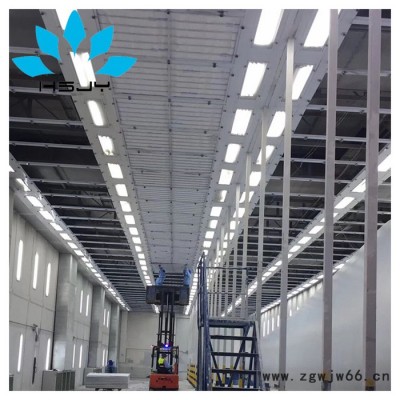

用于涂装工厂、喷漆房、烤漆房等空气过滤。适用于汽车厂、汽车修理厂、摩托车厂、自行车厂、家电涂装作业系统.
Using:
Apply to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.
Apply to automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household appliances painting
| 型号 type | TF08-C600G | TF08-C560G | TF08-S560G | TF08-AF600G | TF08-FS600G | TF08-S600G |
| 材质 Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| 平均效率（比色法） efficiency | 38% | 35% | 35% | 41% | 38% | 38% |
| 平均计重效率 Avg.arrestance | 99% | 98% | 96% | 98% | 98% | 97% |
| 测试风速 Air velocity | 0.25m/S | 0.25m/S | 0.25m/S | 0.25m/S | 0.25m/S | 0.25m/S |
| 额定风 Rated air flow | 900 m3/h | 900 m3/h | 900 m3/h | 900 m3/h | 900 m3/h | 900 m3/h |
| 初阻力 Initial resistance | 38Pa | 35Pa | 30Pa | 45Pa | 35Pa | 35Pa |
| 终阻力 Final resistance | 450Pa | 430Pa | 400Pa | 430Pa | 450Pa | 450Pa |
| 最大容尘量 Dust holding at tested final | 430 g/㎡ | 400 g/㎡ | 380 g/㎡ | 400 g/㎡ | 430 g/㎡ | 450 g/㎡ |
| 过滤级别 Filtration class | F5 | F5 | F5 | F5 | F5 | F5 |
| 耐湿 Resistance humidity | 99% | 99% | 99% | 99% | 99% | 99% |
| 持续耐温 Temp.resistance | 120℃ | 120℃ | 110℃ | 120℃ | 120℃ | 120℃ |
| 瞬间耐温 Temp. short peaks | 140℃ | 140℃ | 120℃ | 140℃ | 140℃ | 140℃ |

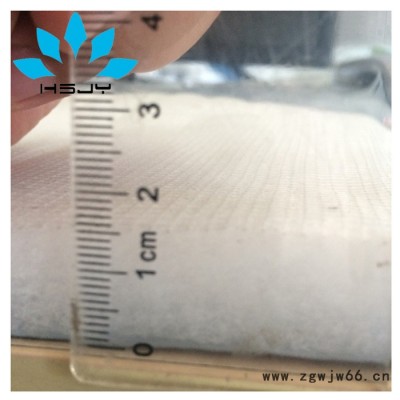

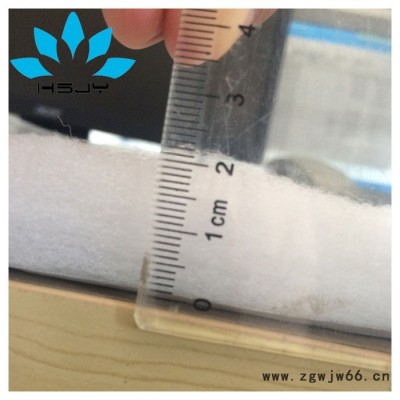

| 正常厚度 Normal thickness | 22mm | 22mm | 22mm | 22mm | 22mm | 22mm |
| 标准尺寸（M） Roll sizes standard | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 |
注：可按客户要求订做
Note:Other specifications are available on request.
