加工定制 | 否 |
---|---|
材质 | 钢质 |
承载 | 300(kg) |
适用范围 | 商超 |
品牌 | yoke |

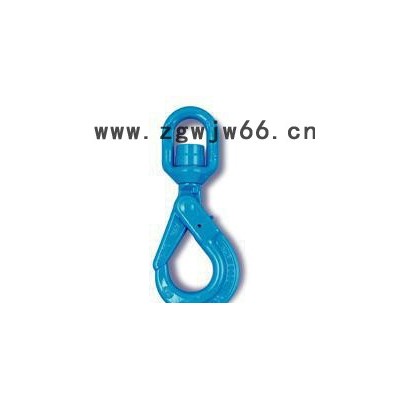

Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions(mm) | N.W. | ||||||
tonnes* | mm | A | B | D | H | K | P | T | Kg | |
X-027N-06 | 1.4 | 6 | 32 | 22 | 12 | 19 | 149 | 28 | 15 | 0.7 |
X-027N-07 | 2.5 | 7, 8 | 36 | 29 | 13 | 24 | 186 | 34 | 20 | 1.3 |
X-027N-10 | 4.0 | 10 | 41 | 34 | 16 | 30 | 218 | 44 | 26 | 2.0 |
X-027N-13 | 6.7 | 13 | 46 | 43 | 21 | 39 | 276 | 51 | 30 | 4.3 |
X-027N-16 | 10.0 | 16 | 61 | 50 | 23 | 49 | 329 | 60 | 36 | 7.3 |
X-027N-20 | 16.0 | 20 | 74 | 82 | 25 | 65 | 387 | 70 | 53 | 13.0 |
X-027N-22 | 19.0 | 22 | 97 | 95 | 33 | 63 | 457 | 80 | 49 | 20.0 |
X-027N-26 | 26.5 | 26 | 123 | 115 | 42 | 69 | 535 | 99 | 56 | 32.7 |
