| 内径 | 3.2mm |
| 外径 | 7mm |
| 长度 | 13mm |
| 材质 | PA66/POM/ABS/氯丁橡胶 |
| 产品认证 | IOS9001 |
| 防火等级 | (UL)94-V2 |
| 颜色 | 本色/黑色 |
| 品牌 | 零件买卖网 |
| 型号 | JZ-47 |
| 加工定制 | 是 |

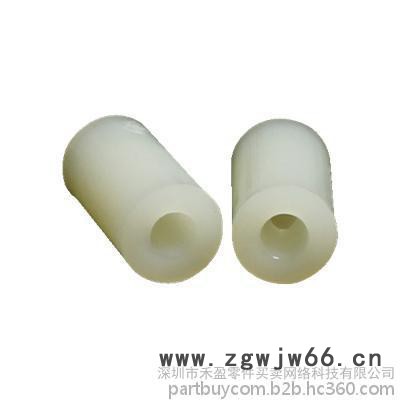

一、产品简图（Product sketch）
| 产品描述(deion)
型号(type)：直通管系列
材料(material)：PA66/POM/ABS/氯丁橡胶
颜色：黑色/本色/白色/灰色
Color: black/natural/white/gray 单位(unit)：mm 防火等级(Fireproofing level)：(UL)94-V2
|
| 二、产品参数（Product Parameter）
| 型号 | 产品编号 | ?D | ?d | L | | JZ-01 | GP25001-POAEM | 10 | 5 | 20-80 | | JZ-02 | GP25002-POAEM | 12 | 5 | 20-80 | | JZ-03 | GP25003-POAEB | 4.5 | 3 | 1-30 | | JZ-04 | GP25004-POAEB | 5 | 3.5 | 1-30 | | JZ-05 | GP25005-POAEB | 6.3 | 3.2 | 1-19 | | JZ-06 | GP25006-POAEB | 6.3 | 4 | 20-30 | | JZ-07 | GP25007-POAEM | 12.7 | 6.3 | 2.5 | | JZ-08 | GP25008-POAEM | 12.7 | 6.3 | 7.5 | | JZ-09 | GP25009-POAEB | 10 | 5 | 42 | | JZ-10 | GP25010-66AEM | 5 | 3.2 | 47 | | JZ-11 | GP25011-66AEM | 6.3 | 3.5 | 1.5 | | JZ-12 | GP25012-66AEM | 6.3 | 3.5 | 30 | | JZ-13 | GP25013-66AEM | 6.2 | 3.1 | 3 | | JZ-14 | GP25014-66AEM | 6.3 | 4 | 3 | | JZ-15 | GP25015-66ABM | 8 | 4 | 30 | | JZ-16 | GP25016-ABAAM | 8.05 | 4.25 | 3.9 | | JZ-17 | GP25017-66AEM | 4.76 | 2.31 | 3.73 | | JZ-18 | GP25018-66AEM | 5 | 3 | 3 | | JZ-19 | GP25019-66AEM | 4.76 | 2.28 | 3.17 | | JZ-20 | GP25020-ABAOM | 58.8 | 3.7 | 6.35 | | JZ-21 | GP25021-66AEM | 5 | 3.2 | 2.5 | | JZ-22 | GP25022-66AEB | 4 | 2.8 | 4 | | JZ-23 | GP25023-66AEB | 5 | 3.2 | 2 | | JZ-24 | GP25024-66AEM | 6.3 | 3.5 | 19 | | JZ-25 | GP25025-66AEB | 6.4 | 3.2 | 16 | | JZ-26 | GP25026-66AEB | 6.4 | 3.2 | 14.5 | | JZ-27 | GP25027-66AEB | 7 | 4 | 5 | | JZ-28 | GP25028-66AEB | 5 | 3.5 | 7 | | JZ-29 | GP25029-ABABM | 13 | 10 | 3 | | JZ-30 | GP25030-66AEM | 6.3 | 3.5 | 3 | | JZ-31 | GP25031-66AEB | 5 | 3.3 | 15 | | JZ-32 | GP25032-66AEB | 7 | 4.2 | 10 | | JZ-33 | GP25033-66AEB | 7 | 3 | 12 | | JZ-34 | GP25034-66AEB | 10 | 5 | 15 | | JZ-35 | GP25035-66AEB | 5 | 3.2 | 10 | | JZ-36 | GP25036-66AEB | 5 | 3.2 | 2 | | JZ-37 | GP25037-66AEB | 5 | 3.2 | 4 | | JZ-38 | GP25038-66AEB | 5 | 3.2 | 5 | | JZ-39 | GP25039-66AEB | 6.3 | 4 | 5 | | JZ-40 | GP25040-66AEB | 5 | 3.5 | 4.3 | | JZ-41 | GP25041-66AEB | 5 | 3.5 | 6 | | JZ-42 | GP25042-66AEB | 5 | 3.6 | 4 | | JZ-43 | GP25043-66AEB | 6.3 | 3.2 | 3 | | JZ-44 | GP25044-66AEB | 6.4 | 4.2 | 3.1 | | JZ-45 | GP25045-66AEB | 6.5 | 4 | 5 | | JZ-46 | GP25046-66AEB | 7 | 3 | 10 | | JZ-47 | GP25047-66AEB | 7 | 3.2 | 13 | | JZ-48 | GP25048-66AEB | 7 | 3 | 3 | | JZ-49 | GP25049-66AEB | 7 | 3.1 | 2 | | JZ-50 | GP25050-66AEB | 5 | 3.2 | 10 | | JZ-51 | GP25051-66AEB | 7 | 4.2 | 8 | | JZ-52 | GP25052-66AEB | 9.5 | 5..5 | 5.5 | | JZ-53 | GP25053-66AEB | 6 | 3.5 | 4 | | JZ-54 | GP25054-66ABB | 10 | 5.2 | 1.6 | | |
| 三、产品用途(Application) |
该产品广泛应用于电子，电器，通讯设备，电脑机箱等行业，主要用以用于板与板之间快速链接支柱，提供板间之距离及空间；安装方便，能很好的提升整个产品档次。
PCB spacer support is widely applied to electron, electric facilities,communication devices, and PC cases industries;Mainly used for rapid link between the board and the board pillar;Provide certain space and distance between PC boards;Easily and conveniently to install;Can provide a higher level of classiness. |
| 四、产品性能(Function) |
该产品为PA66材料注塑成型，单体设计，无需使用螺丝、螺母和垫圈；体积小，不占空间；安装简易、用手工可以快递安装；使用方便，轻巧美观。
Made from PA66 plastic injection molding;Single designed without screws, nuts or washers;Small in size and occupies little space;Artistic in appearance;Easily to install by hand and conveniently to use. |
