加工定制 | 是 |
---|---|

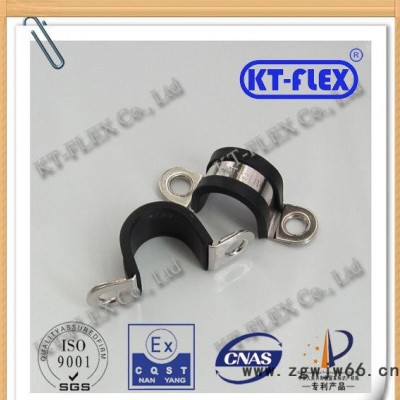

适用范围 | 保护电线电缆 |
样品或现货 | 现货 |
是否标准件 | 非标准件 |
标准类型 | 国标 |
标准编号 | PCLD |
规格 | 齐全 |
品牌 | KT |
型号 | PCLD |
不包胶型 | ||||||
订货号 | 内径 | 螺钉孔径 | 宽度 | 厚度 | ||
PCLD | PCLI | PCLR | ||||
PCLD006 | PCLI006 | PCLR006 | 11 | 6.6 | 15 | 1.0 |
PCLD007 | PCLI007 | PCLR007 | 14 | 6.6 | 15 | 1.0 |
PCLD008 | PCLI008 | PCLR008 | 16 | 6.6 | 15 | 1.0 |
PCLD010 | PCLI010 | PCLI010 | 18 | 6.6 | 15 | 1.5 |
PCLD011 | PCLI011 | PCLI011 | 22 | 6.6 | 15 | 1.5 |
PCLD012 | PCLI012 | PCLI012 | 27 | 6.6 | 15 | 1.5 |
PCLD013 | PCLI013 | PCLI013 | 32 | 6.6 | 15 | 2.0 |
PCLD014 | PCLI014 | PCLI014 | 40 | 6.6 | 15 | 2.0 |
PCLD015 | PCLI015 | PCLI015 | 47 | 6.6 | 15 | 2.0 |
PCLD016 | PCLI016 | PCLI016 | 60 | 6.6 | 15 | 2.5 |
PCLD017 | PCLI017 | PCLI017 | 76.8 | 6.6 | 15 | 2.5 |
PCLD018 | PCLI018 | PCLI018 | 86.5 | 6.6 | 15 | 2.5 |
PCLD019 | PCLI019 | PCLI019 | 111.5 | 6.6 | 15 | 3.0 |
包胶型 | ||||||
订货号 | 内径 | 螺钉孔径 | 宽度 | 厚度 | ||
PCLDP | PCLIP | PCLRP | ||||
PCLDP006 | PCLIP006 | PCLRP006 | 9 | 6.6 | 15 | 1.0 |
PCLDP007 | PCLIP007 | PCLRP007 | 12 | 6.6 | 15 | 1.0 |
PCLDP008 | PCLIP008 | PCLRP008 | 14 | 6.6 | 15 | 1.0 |
PCLDP010 | PCLIP010 | PCLRP010 | 16 | 6.6 | 15 | 1.5 |
PCLDP011 | PCLIP011 | PCLRP011 | 20 | 6.6 | 15 | 1.5 |
PCLDP012 | PCLIP012 | PCLRP012 | 25 | 6.6 | 15 | 1.5 |
PCLDP013 | PCLIP013 | PCLRP013 | 30 | 6.6 | 15 | 2.0 |
PCLDP014 | PCLIP014 | PCLRP014 | 38 | 6.6 | 15 | 2.0 |
PCLDP015 | PCLIP015 | PCLRP015 | 45 | 6.6 | 15 | 2.0 |
PCLDP016 | PCLIP016 | PCLRP016 | 58 | 6.6 | 15 | 2.5 |
PCLDP017 | PCLIP017 | PCLRP017 | 73.5 | 6.6 | 15 | 2.5 |
PCLDP018 | PCLIP018 | PCLRP018 | 84.5 | 6.6 | 15 | 2.5 |
PCLDP019 | PCLIP019 | PCLRP019 | 109.5 | 6.6 | 15 | 3.0 |
