直销JP70-P大颗粒砂浆喷浆机 采用进口电机、空压机砂浆

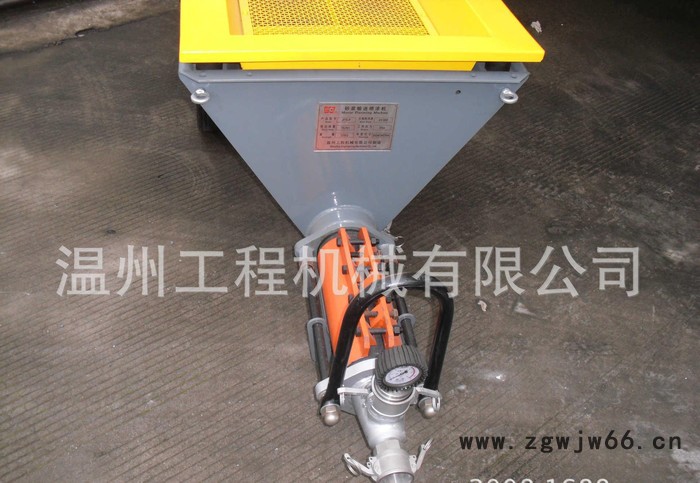

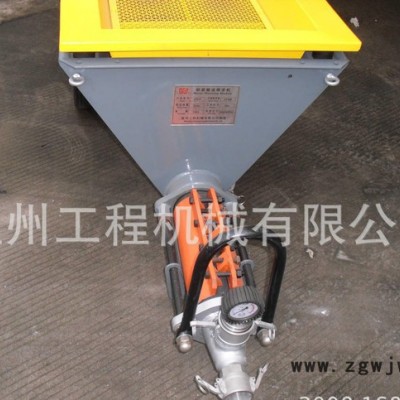

      JP70-P是我公司引进意大利技术制造的一款多功能为一体的大排量砂浆喷涂机械，具备泵送、粘结、喷涂联合作业功能；适宜各种不同特性，不同用途的预拌干混砂浆施工；模块式结构，拆卸简单，移动方便，使用容易；具备选择控制调节功能，实现不同的压力、排量与喷涂速度；设有压力保护装置，满足远程控制操作需要。

      JP70-P is multi-functional large output plastering machine introduced Italian technology. It has the combined functions of pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction. With modular structure, it's easy to move, dissemble and operate. With variable speed regulation, can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.

标准配置 Standard equipment

泵设备 Pump equipment      Wenggong D70

防震压力计总成    Shockproof pressure gage assembly

变速马达   Variable-speed motor

气泵集成  Air pump integration (配置 JP70-P Equipment)

振动筛 Vibrating screen

整体式控制箱 Integral control box

带有气源支持喷枪Spraying gun with air support (配喷嘴 with spraying nozzle, 配置 JP70-P Equipment )

输浆管 Delivery hose     GB/T3683 32-1-W.P.9Mpa或

                        GB/T3683 38-1-W.P.7Mpa  Length:10m

带快速连接器空气管 Air tube  with fast connector  ID: ￠13  Length:10m (配置 JP70-P Equipment )

手动油泵 Manual oil pump Y6

工具箱Tool box

操作说明书 Operating instruction

JP70-P型砂浆喷涂机技术参数

Technical parameters of JP70 Mortar plastering machine

  型号Model                                                  JP70-P

  电源Supply power                                       400V   50Hz

  电机功率Motor power                                   4/5.5kw

  压缩机功率Compressor power                        0.9kw

  **大颗粒尺寸Maximum grain size                   8mm

  排量Output                                                50L/min

  输送压力Delivery pressure                            30bar

  水平输送距离Horizontal delivery distance        0-60m

  垂直输送距离Vertical delivery distance            0-30m

  送料斗容量Hopper volume                            120L

  重量Net weight                                           275mm

  外型尺寸Dimension (L×W×H)                       2040*820*950mm

注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。

Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
