| 产地 | 江苏 |
|---|---|
| 额定电流 | 1A |
| 额定电压 | 24V |
| 额定转矩 | 1 |
| 额定转速 | 1000 |
| 极数 | 2极 |
| 类型 | 交直流两用电动机 |
| 品牌 | 常州博宏电机 |
| 型号 | 42HB48F1AB |
| 加工定制 | 否 |
| 质量认证 | CE |

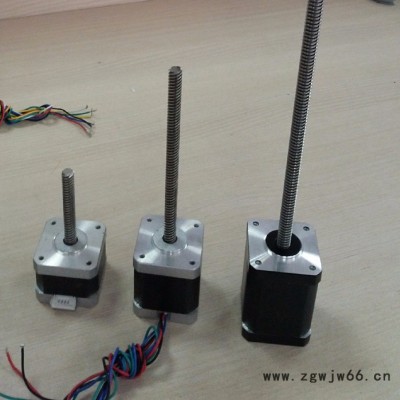

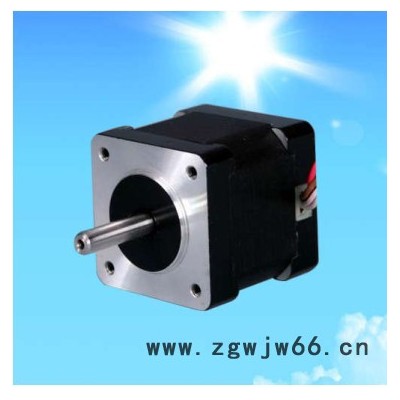

42BYGHB 1.8°两相混合式步进电机
技术参数Technique parameter| 项目 Item | 性能 Specifications |
| 步距角 Step Angle | 1.8。 |
| 步距角精度 Step Angle Accuracy | ±5% (full Step，no load) |
| 电阻公差 Resistance Accuracy | ±10% |
| 电感公差 Inductance Accuracy | ±20% |
| 温升 Temperature Rise | 80。C Max.(rated current，2 phase on) |
| 环境温度 Ambient Temperature | -20。C~+50。C |
| 绝缘电阻 Insulation Resistance | 100MΩMin. ,500VDC |
| 介电强度 Dielectric Strength | 500VAC for one minute |
| 转轴径向跳动 Shaft Radial Play | 0.02Max. (450 g-load) |
| 转轴轴向间隙 Shaft Axial Play | 0.08Max. (450 g-load) |
| 最大径向力 Max radial force | 28N |
| 最大轴向力 Max axial force | 10N |
| 绝缘等级 Insulation Class | B（130°） |
| 型号 Series Model | 机身长 Motor Length | 相电压 Rate Voltage | 相电流 Rated Current | 相电阻 Phase Resistance | 相电感 Phase Inductance | 静力矩 Holding Torque | 引线数 Lead Wire | 转动惯量 Rotor Inertia | 重量 Motor Weight |
| (mm) | (V) | (A) | (Ω) | (mH) | (Kg.cm) | (NO.) | (g.cm2) | (g) | |
| 42HB34F04AB | 34 | 13.2 | 0.4 | 33 | 45 | 2.4 | 4 | 34 | 200 |
| 42HB34F08AB | 4.96 | 0.8 | 6.2 | 10 | 2.4 | 4 | |||
| 42HB34F105AB | 2.7 | 1.5 | 1.8 | 2.4 | 2.4 | 4 | |||
| 42HB40F102AB | 40 | 6.5 | 1.2 | 6 | 13 | 3.0 | 4 | 54 | 220 |
| 42HB40F107AB | 2.4 | 1.7 | 1.5 | 2.5 | 3.5 | 4 | |||
| 42HB40F05AB | 4.1 | 0.5 | 8 | 15 | 2.6 | 4 | |||
| 42HB44F05A | 44 | 8.9 | 0.5 | 18 | 23 | 2.9 | 4 | 50 | 250 |
| 42HB44F1AB | 8 | 1 | 8 | 16 | 3.5 | 4 | |||
| 42HB48F04AB | 48 | 8.0 | 0.4 | 20 | 40 | 4.0 | 4 | 68 | 280 |
| 42HB48F08AB | 7.2 | 0.8 | 9 | 15 | 4.5 | 4 | |||
| 42HB48F105AB | 4.2 | 1.5 | 2.8 | 4.8 | 4.0 | 4 | |||
| 42HB62F2AB | 62 | 3.2 | 2.0 | 1.6 | 3.0 | 8.0 | 4 | 68 | 320 |
