| 品牌 | 博宏 |
|---|---|
| 型号 | 42BYGHB，42BYGHBM，42BYGHBW |
上以仅为代表性产品,派生产品可根据客户要求制做

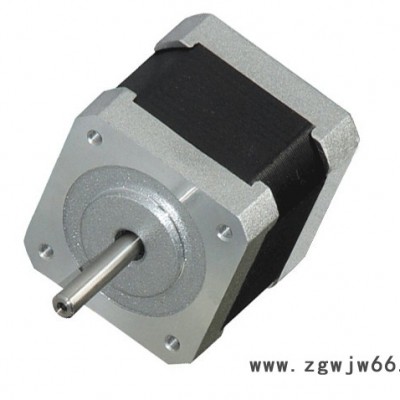

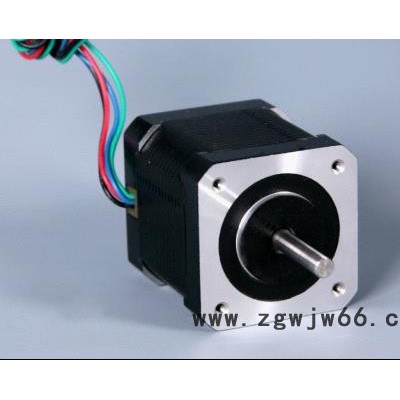

BH42HB
产品说明
| 项目 | 技术参数 |
| 步距角 | 1.8。 |
| 步距角精度 | ±5% (整步, 空载) |
| 电阻精度 | ±10% |
| 电感精度 | ±20% |
| 温升 | 80。C Max.( 额定电流,2相通电) |
| 环境温度 | -20。C~+50。C |
| 绝缘电阻 | 100MΩMin. ,500VDC |
| 耐压 | 500VAC 一分钟 |
| 径向间隙 | 0.02Max. (450 g负载) |
| 轴向间隙 | 0.08Max. (450 g负载) |
| 径向最大负载 | 28N (距法兰面20mm) |
| 轴向最大负载 | 10N |
技术参数
| 型号. | 额定 电压 | 电流 /相 | 电阻 /相 | 电感 /相 | 静力矩 | 引出线 | 转动惯量 | 重量 | 定位力矩 | 机身 长度 | |
| 单出轴 | 双出轴 | V | A | Ω | mH | Kg-cm |
| g-cm2 | kg | g-cm | mm |
| BH42HB254 | BH42HB254D | 9.6 | 0.4 | 24 | 36 | 1.7 | 4 | 20 | 0.15 | 75 | 25 |
| BH42HB346 | BH42HB346D | 4 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 35 | 0.22 | 120 | 34 |
| BH42HB346-01 | BH42HB346-01D | 9.6 | 0.4 | 24 | 15 | 1.6 | 6 | ||||
| BH42HB346-02 | BH42HB346-02D | 12 | 0.31 | 38.5 | 21 | 1.6 | 6 | ||||
| BH42HB344 | BH42HB344D | 2.8 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | ||||
| BH42HB406 | BH42HB406D | 4 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 54 | 0.28 | 150 | 40 |
| BH42HB406-01 | BH42HB406-01D | 6 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | ||||
| BH42HB406-02 | BH42HB406-02D | 12 | 0.4 | 30 | 30 | 2.6 | 6 | ||||
| BH42HB404 | BH42HB404D | 2.8 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | ||||
| BH42HB486 | BH42HB486D | 4 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 68 | 0.35 | 200 | 48 |
| BH42HB486-01 | BH42HB486-01D | 6 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | ||||
| BH42HB486-02 | BH42HB486-02D | 12 | 0.4 | 30 | 25 | 3.17 | 6 | ||||
| BH42HB484 | BH42HB484D | 2.8 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | ||||
| BH42HB606 | BH42HB606D | 7.2 | 1.2 | 6 | 7 | 6.5 | 6 | 102 | 0.5 | 280 | 60 |
