价格:
¥17.00/米
品牌:景顺,宇特,
颜色:黄、黑、蓝
包装:一级
起订:500米
供应:50000米
发货:2天内
颜色 | 黄、黑、蓝 |
包装 | 一级 |
品牌 | 宇特 |
型号 | 齐全 |
材质 | 尼龙、聚氨酯 |
产地/产商 | 河北衡水 |
超高压钢丝编织尼龙喷涂软管 高低压纤维编织尼龙喷涂软管 主要用于以下行业: 1、汽车的压力制动系统、动力转向系统; 2、石油钻探行业远距离输送洗井系统; 3、汽车的高压清洗机; 4、变速箱控制系统; 5、工程机械,如:挖掘机、装载机、起重机的液压输送系统及液压控制系统; 6、机械加工设备的液压操作和液压控制系统; 7、船厂高压喷漆用管; 8、腐蚀性液体树脂输送用管 9、家用及汽车空调软管 10、高压测试管 | | | 公称内径mm | 增强层数 | 外径mm | 允许工作压力MPa | 最小爆破压力MPa | 最小弯曲半径mm | GPA型 | XPA型 | GPA型 | XPA型 | GPA型 | XPA型 | GPA型 | XPA型 | 4 | Ⅰ | 11.5 | 9 | 38 | 20 | 152 | 80 | 85 | 55 | Ⅱ | 13 | 10 | 42 | 25 | 168 | 100 | 6 | Ⅰ | 13 | 10 | 31 | 11.3 | 124 | 45.2 | 100 | 70 | Ⅱ | 14.5 | 11 | 39 | 16 | 156 | 64 | Ⅲ | 15.5 | 12 | 43 | 20 | 172 | 80 | 8 | Ⅰ | 15.5 | 13 | 28 | 8.2 | 112 | 32.8 | 115 | 85 | Ⅱ | 17 | 14 | 35 | 12.5 | 160 | 49 | Ⅲ | 19 | 15 | 45 | 15 | 180 | 60 | 10 | Ⅰ | 17.5 | 16 | 22 | 7 | 88 | 28 | 125 | 95 | Ⅱ | 19.5 | 17.5 | 29 | 11 | 116 | 44 | Ⅲ | 21.5 | 19 | 36 | 13 | 144 | 52 | 12 | Ⅰ | 20 | 19 | 18 | 6.8 | 72 | 27.2 | 180 | 120 | Ⅱ | 22 | 21 | 27 | 10 | 108 | 40 | Ⅲ | 24 | 23 | 30 | 12 | 120 | 48 | 16 | Ⅰ | 24 | 23 | 14 | 5 | 56 | 20 | 205 | 150 | Ⅱ | 26 | 25 | 22 | 8 | 88 | 32 | Ⅲ | 28 | 26.5 | 24 | 10 | 96 | 40 | 19 | Ⅰ | 27.5 | 26 | 11 | 4 | 44 | 16 | 240 | 170 | Ⅱ | 29.5 | 28 | 18 | 7.6 | 72 | 30.4 | Ⅲ | 31.5 | 30 | 20 | 8.8 | 80 | 35.2 | 22 | Ⅰ | 31 | 32 | 11 | 3.8 | 44 | 15.2 | 260 | 200 | Ⅱ | 33 | 34 | 13 | 7.2 | 52 | 28.8 | 25 | Ⅰ | 35 | 35 | 8.5 | 3.7 | 34 | 14.8 | 300 | 270 | Ⅱ | 37 | 37 | 13 | 6.9 | 42 | 27.6 | Ⅲ | 39 | 39 | 16 | 7.8 | 64 | 31.2 | 32 | Ⅰ | 41 | 38 | 8 | 2.6 | 32 | 10.4 | 350 | 310 | Ⅱ | 43 | 40 | 11 | 4.5 | 44 | 18 | Ⅲ | 45 | 42 | 14 | 5.3 | 52 | 21.2 | 注:钢丝增强尼龙弹性体树脂管(GPA) 纤维增强尼龙弹性体树脂管(XPA) |
| | | | SAE100 R7 / R8
| High Pressure (Thermoplastic) | Application: | High pressure thermoplastic hose with a non-perforated cover. Compatible with petroleum, water and synthetic based fluids for mobile equipment, lube lines, blowout preventers, hydraulic lifts and construction machinery, requiring SAE 100R8 non-conductivit | Inner Tube: | Nylon PA6 PA11 PA12 | Reinforcement: | Synthetic Fiber or steel wire braided | Cover Compound: | TPU | Temperature Range: | -40°F to 212°F |
| Part | Hose Size ID | Hose OD | Max. Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight (lbs/foot) | in | DIN Dash Size | in | mm | psi | mpa | in | mm | psi | mpa | 6 | 1/4 | 6.4 MM | 0.625 | 15.9 | 5000 | 34.5 | 2 | 51 | 20000 | 137.9 | 0.118 | 10 | 3/8 | 9.5 MM | 0.765 | 19.4 | 4000 | 27.6 | 2.5 | 64 | 16000 | 110.3 | 0.148 | 13 | 1/2 | 12.7 MM | 0.892 | 22.7 | 3500 | 24.1 | 4 | 102 | 14000 | 96.5 | 0.19 |
|
|
|
|
| |
| | |

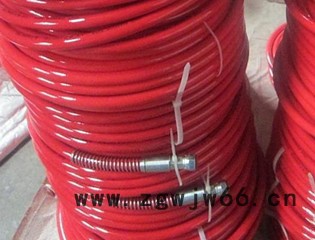

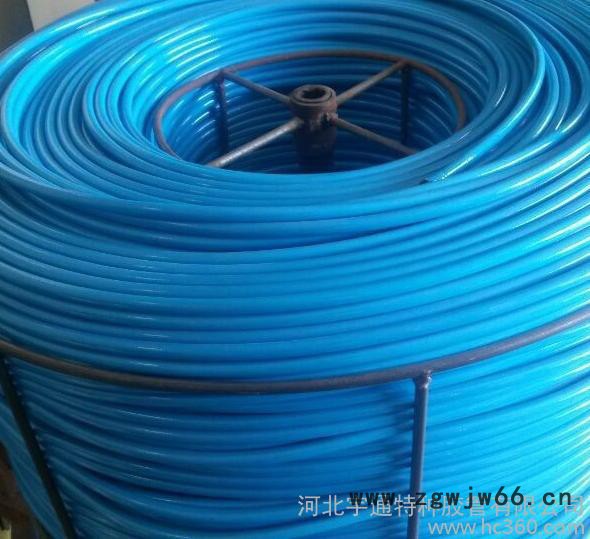

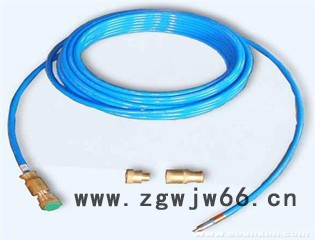

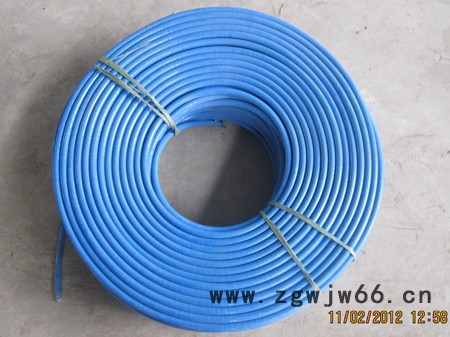

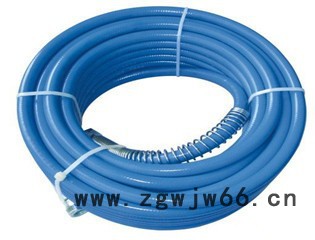

高压喷涂机专用软管(高压喷涂管)
应用于高压无气喷涂机,喷涂油漆、涂料的专用软管,根据喷涂工作压力大小,配制钢丝编织管和纤维编织管,确保喷涂效果。
注:连接口螺纹为G1/4 D,并为用户定制特殊规格的高压喷涂系列。
主要技术参数:
规格(内径*外径MM) | 增强层类型 | 工作压力(Mpa) | 长度(M) |
---|
Φ6.5*Φ11.7 | 钢丝编织一层 | 60 | 15 |
Φ6.5*Φ14.1 | 钢丝编织二层 | 90 | 15 |
Φ6.5*Φ13.5 | 双层纤维编织 | 60 | 15
|
