材质：-
规格：-
| 材质 | - |
|---|---|
| 规格 | - |
| 加工材料范围:碳钢,不锈钢,普通钢材 | 加工贸易形式:任何形式 |
| 加工设备类型:自动冲床 | 类型:金属四滑轨冲压 |
| 加工材料范围:碳钢,不锈钢,普通钢材 | 加工贸易形式:任何形式 |
| 加工设备类型:自动冲床 | 类型:金属四滑轨冲压 |
一、27、35、45各系列钢珠滑轨
使用范围：办公桌抽屉、电脑桌、橱柜、工具柜等
特 点：安装拆卸方便，无需工具；全拉伸；滑行同步；橡胶锁口自动锁紧。
承 载：20kg-51kg
表面处理：蓝锌、五彩锌、黑锌、电泳黑、青铜、镍
材 料：冷轧板cold rolled steel
长 度：8”- 24”（200mm - 600mm）
质量认证：ISO9001:2008国际质量体系认证企业
执行标准：QB/I 2454-B50 (中国行业标准)
DIN 68858-82 (德国行业标准)
二、产品包装说明：
本报价不含税，不含运费。包装说明：白袋白箱包装（毎付一袋，毎20付或30付一箱）。报价有效期一周。

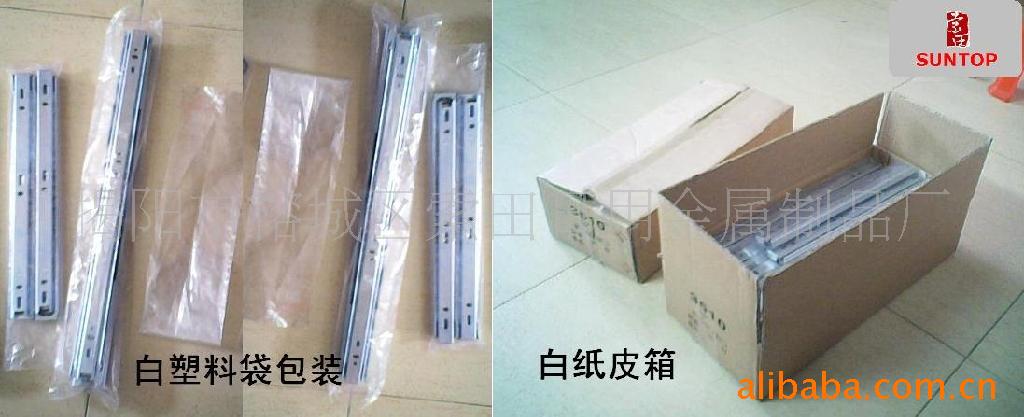

白袋白箱包装指的是：毎付滑轨都是用一个白塑料袋包装，毎20（30）付滑轨用一个白纸皮箱包装。如果要求毎付滑轨都用盒子（纸套）装，需要另外支付盒子的费用，盒子可由客户自行提供或客户委托我厂代采购。白塑料袋和盒子两种包装的区别请看图片：
三、产品说明：
a.产品材料采用高张力冷轧板；
b.达到德国工业标准 ：DIN68858-82；耐久性试验（开合次数）达到50000次以上；
c.表面采用**电镀（镀锌）处理，产品可适用温度范围为-20度至+80度，表面防锈蚀能力强；
d.产品还通过专业仪器进行48小时中性盐雾试验，质量更有保障；
e.闭合卡紧功能使滑轨在完全闭合时，在非一定外力的情况下，轨道不会自动滑出；
f.滑轨带可拆卸装置，方便安装和拆卸，不需要任何工具；
g.多种规格可供选择，不同长度（8寸-32寸），不同厚度（0.7mm-1.5mm），甚至不同孔位等，只要客户需要，我们将竭诚为您服务。
Ⅰ. Daily furniture slides 27、35、45
Usage scope:Office drawers, computer tables, cupboards, tool cabinets, etc.
Features:Convenient installation and removal. No need to use tools.Full extension Automatic rubber lock.
Load capacity:20kg-51kg
Surface treatment:Blue zinc plated,multicolored zinc plated, black zinc plated, electrophoresis black, antique brass plated
Materials:Cold rolled steel
Length:8”- 24”（200mm- 600mm）
Quality authentication:ISO9001:2008 International Quality System Authentication
Executive standard:QB/I 2454-B50 (industrial standard of China) ,DIN 68858-82 (industry standard of Germany)
Ⅱ. Product packaging instructions:
The offer doesn't include tax and freight. This offer remains open for a week.
Packaging details: Packed in white bags and then in white boxes. Each gliding track is packed in a white plastic bag and 20 (or 30) gliding tracks are packed in a white paper box. Customers shall pay for extra charges if paper covers (or boxes) are required. The paper covers can be provided by customers or purchased by our factory.
Ⅲ. Product descriptions:
a.Our products are made of high tension cold rolled plates.
b.Our products are consistent with the industrial standard of Germany DIN68858-82. Over 50,000 durability tests (opening and closing times) have been conducted.
c.Our product surface has gone through high quality electroplating (galvanization) treatment. Temperature range: -20℃to 80℃. Our product surface has good rusty resistance.
d.Our products have also passed 48h neutral salt spray testing through professional equipment. So our product quality is guaranteed.
e.The tightening function makes it impossible for tracks to roll out when they are completely closed except with certain external forces.
f.The self-contained dissembling device makes it easy to install and dissemble. As a result, there is no need to use any other tools.
g.Various specifications are available. We can provide different length from 8 cun (26.67cm) to 32 cun (106.67cm), different thickness from 0.7mm to 1.5mm and even different hole position to satisfy our customers' various demands.
