表面处理：镀锌
规格：M8
起订：2000G
供应：2000000G
| 表面处理 | 镀锌 |
|---|---|
| 规格 | M8 |
| 类别 | 拉爆螺栓 |
| 适用范围 | 机械 |
| 是否标准件 | 标准件 |
| 标准编号 | LHGOOD |
| 样品或现货 | 现货 |
| 标准类型 | 德标 |
| 品牌 | LHGOOD |
| 型号 | M8*10 |
| 加工定制 | 是 |
| 材料等级 | 不锈钢 |

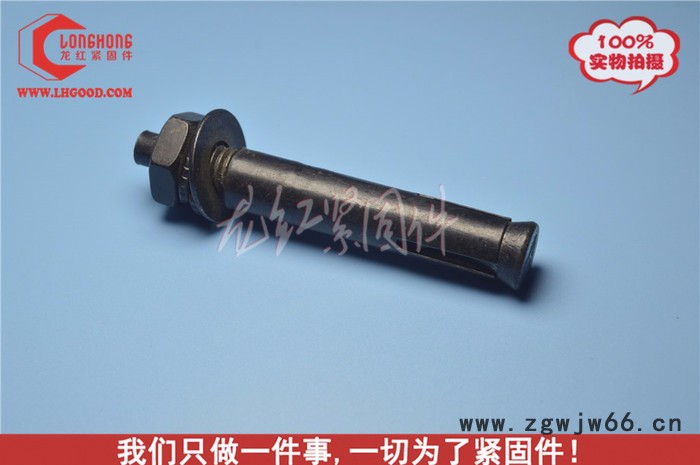

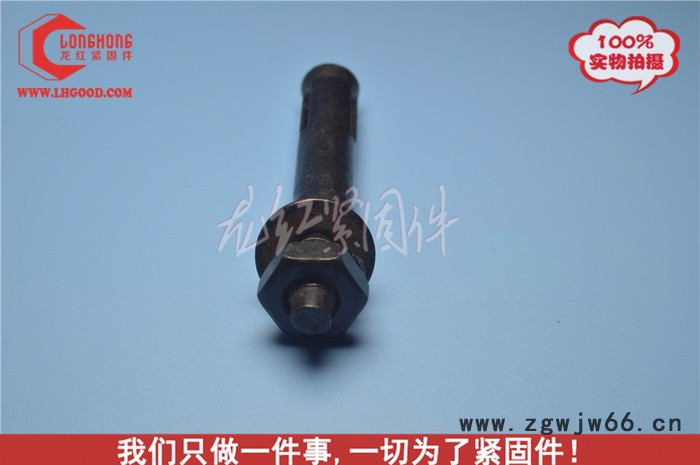

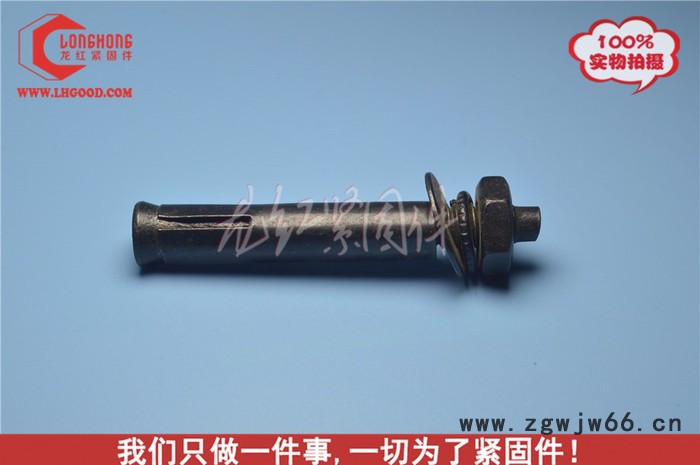

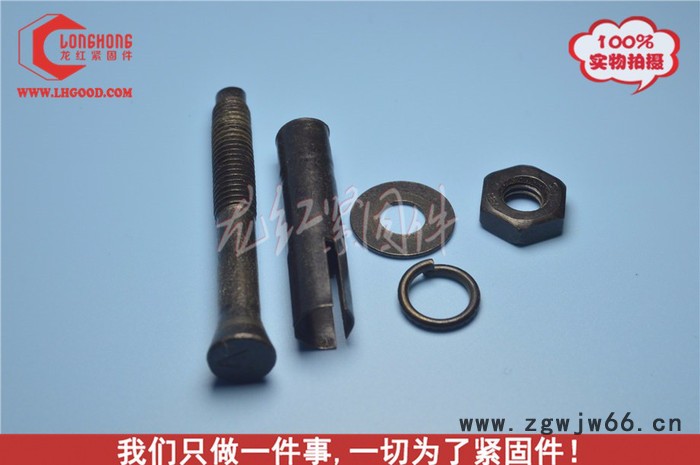

LHGOODM8*10其他紧固件/连接件_黑锌拉爆螺丝,美制拉爆螺丝,非标拉爆螺丝,深圳拉爆螺丝
产品详情 Product details联系我们 Contact us
| 品名 | 料号 | 规格 Size M | 长度 [L] [mm] | 最大夹具厚度[tfix] [mm] | 螺纹长度 [F] [mm] | Ø 夹具孔[df] [mm] | 钻孔深度 [hef] [mm] | Ø x 规格 [d0 x h1] [mm] |
|---|---|---|---|---|---|---|---|---|
| LH 6/5 | LH06060 | 6 | 60 | 5 | 30 | 7 | 40 | 6x55 |
| LH 6/10 | LH06065 | 6 | 65 | 10 | 30 | 7 | 40 | 6x55 |
| LH 6/20 | LH06075 | 6 | 75 | 20 | 35 | 7 | 40 | 6x55 |
| LH 6/30 | LH06085 | 6 | 85 | 30 | 40 | 7 | 40 | 6x55 |
| LH 8/5 | LH08068 | 8 | 68 | 5 | 40 | 9 | 45 | 8x65 |
| LH 8/10 | LH08073 | 8 | 73 | 10 | 45 | 9 | 45 | 8x65 |
| LH 8/20 | LH08083 | 8 | 83 | 20 | 45 | 9 | 45 | 8x65 |
| LH 8/30 | LH08093 | 8 | 93 | 30 | 50 | 9 | 45 | 8x65 |
| LH 8/40 | LH08103 | 8 | 103 | 40 | 50 | 9 | 45 | 8x65 |
| LH 8/50 | LH08113 | 8 | 113 | 50 | 60 | 9 | 45 | 8x65 |
| LH 8/70 | LH08133 | 8 | 133 | 70 | 85 | 9 | 45 | 8x65 |
| LH 8/100 | LH08163 | 8 | 163 | 100 | 100 | 9 | 45 | 8x65 |
| LH 10/5 | LH10078 | 10 | 78 | 5 | 40 | 12 | 50 | 10x70 |
| LH 10/10 | LH10083 | 10 | 83 | 10 | 40 | 12 | 50 | 10x70 |
| LH 10/20 | LH10093 | 10 | 93 | 20 | 50 | 12 | 50 | 10x70 |
| LH 10/30 | LH10103 | 10 | 103 | 30 | 50 | 12 | 50 | 10x70 |
| LH 10/40 | LH10113 | 10 | 113 | 40 | 60 | 12 | 50 | 10x70 |
| LH 10/50 | LH10123 | 10 | 123 | 50 | 60 | 12 | 50 | 10x70 |
| LH 10/70 | LH10143 | 10 | 143 | 70 | 70 | 12 | 50 | 10x70 |
| LH 10/100 | LH10173 | 10 | 173 | 100 | 80 | 12 | 50 | 10x70 |
| LH 12/5 | LH12104 | 12 | 104 | 5 | 60 | 14 | 65 | 12x90 |
| LH 12/10 | LH12109 | 12 | 109 | 10 | 60 | 14 | 65 | 12x90 |
| LH 12/20 | LH12119 | 12 | 119 | 20 | 70 | 14 | 65 | 12x90 |
| LH 12/30 | LH12129 | 12 | 129 | 30 | 70 | 14 | 65 | 12x90 |
| LH 12/40 | LH12139 | 12 | 139 | 40 | 80 | 14 | 65 | 12x90 |
| LH 12/50 | LH12149 | 12 | 149 | 50 | 100 | 14 | 65 | 12x90 |
| LH 12/80 | LH12179 | 12 | 179 | 80 | 110 | 14 | 65 | 12x90 |
| LH 12/100 | LH12199 | 12 | 199 | 100 | 110 | 14 | 65 | 12x90 |
| LH 12/120 | LH12219 | 12 | 219 | 120 | 125 | 14 | 65 | 12x90 |
| LH 12/140 | LH12239 | 12 | 239 | 140 | 125 | 14 | 65 | 12x90 |
| LH 12/160 | LH12259 | 12 | 259 | 160 | 125 | 14 | 65 | 12x90 |
| LH 16/30 | LH16151 | 16 | 151 | 30 | 80 | 18 | 80 | 16x110 |
| LH 16/50 | LH16171 | 16 | 171 | 50 | 80 | 18 | 80 | 16x110 |
| LH 16/80 | LH16201 | 16 | 201 | 80 | 100 | 18 | 80 | 16x110 |
| LH 16/100 | LH16221 | 16 | 221 | 100 | 100 | 18 | 80 | 16x110 |
| LH 16/140 | LH16261 | 16 | 261 | 140 | 110 | 18 | 80 | 16x110 |
| LH 20/30* | LH20173 | 20 | 173 | 30 | 100 | 22 | 100 | 20x130 |
| LH 20/50* | LH20193 | 20 | 193 | 50 | 95 | 22 | 100 | 20x130 |
| LH 20/80* | LH20223 | 20 | 223 | 80 | 125 | 22 | 100 | 20x130 |
| LH20/120* | LH20263 | 20 | 263 | 120 | 150 | 22 | 100 | 20x130 |
| 规格 | 混凝土 | [Nm] | |||||||
|---|---|---|---|---|---|---|---|---|---|
| [kN] | [kN] | ||||||||
| C20/25 | C30/37 | C40/50 | C50/60 | C20/25 | C30/37 | C40/50 | C50/60 | ||
| LH 6/5 | 4.3 | 4.6 | 5 | 5.3 | 3.4 | 3.4 | 3.4 | 3.4 | 5.7 |
| LH 6/10 | 4.3 | 4.6 | 5 | 5.3 | 3.4 | 3.4 | 3.4 | 3.4 | 5.7 |
| LH 6/20 | 4.3 | 4.6 | 5 | 5.3 | 3.4 | 3.4 | 3.4 | 3.4 | 5.7 |
| LH 6/30 | 4.3 | 4.6 | 5 | 5.3 | 3.4 | 3.4 | 3.4 | 3.4 | 5.7 |
| LH 8/5 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/10 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/20 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/30 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/40 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/50 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/70 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 8/100 | 5.7 | 7 | 8.1 | 8.9 | 5.4 | 5.4 | 5.4 | 5.4 | 13.8 |
| LH 10/5 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/10 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/20 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/30 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/40 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/50 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/70 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 10/100 | 7.6 | 9.3 | 10.7 | 11.8 | 8.8 | 9.7 | 9.7 | 9.7 | 27.1 |
| LH 12/5 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/10 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/20 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/30 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/40 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/50 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/80 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/100 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/120 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/140 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 12/160 | 12.6 | 15.4 | 17.8 | 19.5 | 14.3 | 14.3 | 14.3 | 14.3 | 47.1 |
| LH 16/30 | 17.2 | 21 | 24.3 | 26.7 | 26.9 | 26.9 | 26.9 | 26.9 | 111 |
| LH 16/50 | 17.2 | 21 | 24.3 | 26.7 | 26.9 | 26.9 | 26.9 | 26.9 | 111 |
| LH 16/80 | 17.2 | 21 | 24.3 | 26.7 | 26.9 | 26.9 | 26.9 | 26.9 | 111 |
| LH 16/100 | 17.2 | 21 | 24.3 | 26.7 | 26.9 | 26.9 | 26.9 | 26.9 | 111 |
| LH 16/140 | 17.2 | 21 | 24.3 | 26.7 | 26.9 | 26.9 | 26.9 | 26.9 | 111 |
| LH 20/30* | 19.9 | 19.9 | 19.9 | 19.9 | 26.7 | 26.7 | 26.7 | 26.7 | 141.4 |
| LH 20/50* | 19.9 | 19.9 | 19.9 | 19.9 | 26.7 | 26.7 | 26.7 | 26.7 | 141.4 |
| LH 20/80* | 19.9 | 19.9 | 19.9 | 19.9 | 26.7 | 26.7 | 26.7 | 26.7 | 141.4 |
| LH20/120* | 19.9 | 19.9 | 19.9 | 19.9 | 26.7 | 26.7 | 26.7 | 26.7 | 141.4 |
