品牌：南澳电气
产地：武汉
工作电压：380V
起订：1套
供应：999999套
| 产地 | 武汉 |
|---|---|
| 工作电压 | 380V |
| 类型 | 便携式高压试验设备 |
| 上市时间 | 2005年夏季 |
| 输出方式 | 全自动输出 |
| 执行质量标准 | 国标 |
| 品牌 | 南澳电气 |
| 型号 | NAJNY |
| 加工定制 | 否 |
| 结构特征 | 一体化设计 |
| 准入认证 | ISO9002 |

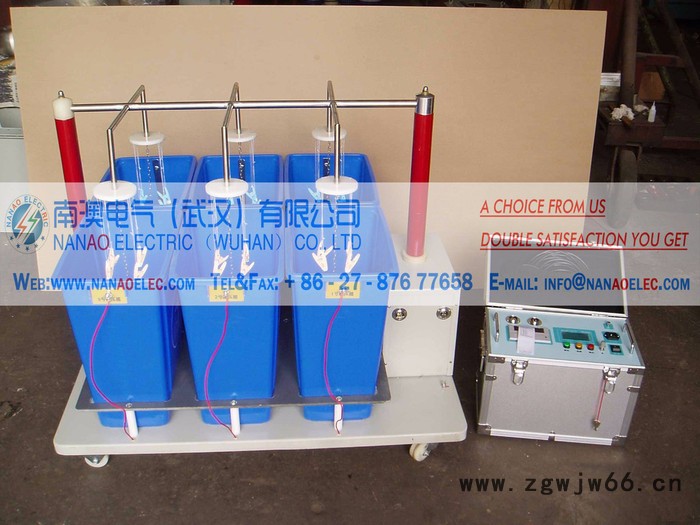

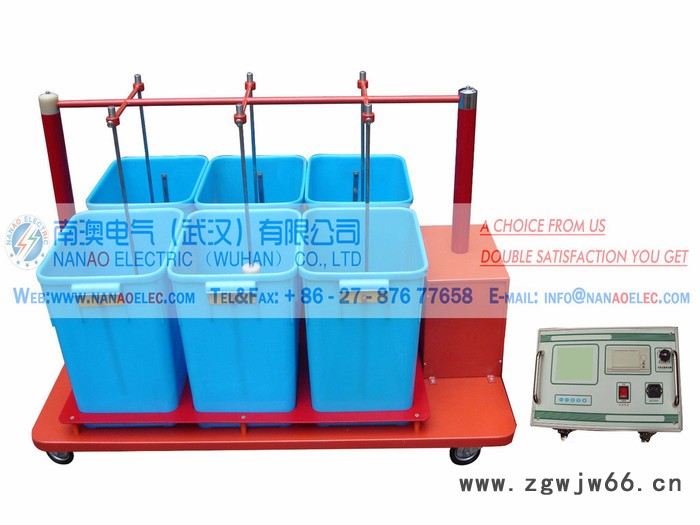

NAJNY Automatic Insulated Boots (gloves) withstand Voltage Testing Device
NAJNY全自动绝缘靴（手套）耐压试验装置
产品简介
NAJNY绝缘靴（手套）耐压试验装置(自动)是绝缘靴（手套）批量试验的专用设备。也可以对安全工器具进行测试，例如绝缘杆、绝缘螺丝刀、绝缘垫等。南澳电气根据绝缘靴（手套）的试验要求，并遵从广大用户意见而设计生产的。该产品有效的解决了过去不规范试验，提高了工作效率、保障了工作安全，是理想的绝缘靴（手套）专用设备。
NAJNY绝缘靴（手套）耐压试验装置(自动)采用先进的微电子处理技术，全部使用过程可提前进行设置，中英文界面，操作简单明了。全部测试项目设定后自动进行测试，无须人工干预。
产品别名
绝缘靴手套耐压试验装置，防护工具绝缘试验台，绝缘靴手套耐压测试仪，辅助绝缘工具试验装置，绝缘靴绝缘手套试验装置，带电防护用具绝缘测试装置，绝缘鞋绝缘手套试验机，绝缘靴绝缘手套试验机
产品特性
1、高压电压、泄漏电流、耐压时间、状态信息多种数据同屏液晶显示，带背光，读数清晰、非常直观。
2、中英文界面，有状态提醒，引导式工作，操作简单明了。
3、轻触式面板按键操作，所有功能均可通过按键设定，提高了产品的安全性、可靠性。
4、全数字式调校，摒弃了陈旧的电位器调整方式，现场使用极为方便。
5、采用硬、软件抗干扰技术相结合，性能稳定，抗干扰性强。
产品参数
1. 输入电压：AC220V ; 50Hz
2. 输出电压：0-30kV
3. 容 量：3kVA
4. 测试数量：每次6只
5. 测量数据：可显示打印每只被试品电压值；泄漏电流值
6. 过流保护；过压保护；自定义时间、电压、泄漏电流值
7. 液晶显示，中英文菜单操作，带打印功能
8. 测量准确度：电压±2%（±3个字）电流±2%（±3个字）
9. 重量：绝缘靴（手套）操作箱12Kg
工频耐压试验台60kg
Product introduction
NAJNY insulated boots (gloves) withstand voltage testing device (automatic) are the special equipment for insulated boots (gloves) batch testing. They can test the safety equipment, such as insulating rod, insulated screwdriver, insulation pad. Nanao Electrical according to the insulated boots (gloves) testing requirements, and follows the advice of user, design and produce the product. The product is an effective solution for the former non-standard tests, improve work efficiency, and protect working safety, such an ideal insulated boots (gloves) special equipment.
Also called name
Insulated gloves & boots withstand voltage testing equipment, protective equipment insulation test bed, insulated boots & gloves withstand tester, assistive insulated tools testing device, insulated gloves & boots testing device, charged protective equipment insulation testers, insulated boots & gloves tester, insulated boots & gloves testing machine
The Characteristics of the products
1, High voltage, leakage current, withstand voltage time status information and other data will be displayed LCD screen at the same time, with back light, clear reading and is intuitive.
2, English interface, status notification, reminders, guided working, the operation is simple and straightforward.
3, Light touch panel keys operation, all functions can be set through the keys, to improve product safety and reliability.
4, Full digital calibration, eliminating the old potentiometer adjustment method, scene extremely easy to use.
5, Adopt hardware and software anti-jamming technology, with stable performance and strong anti-interference.
The parameters of the products
1. Input voltage: AC220V 50Hz
2. Output voltage :0-30kV
3. Capacity: 3kVA
4. Quantity of tests: Each 6 pieces per time
5. Measured data: Can display and print each tested voltage value and leakage current value
6. Over current protection; over voltage protection; custom time, voltage, leakage current value
7. Large LCD display,: full English menu operation with print
8. Measurement accuracy: Voltage ± 2% (± 3 word) Current ± 2% (± 3 words)
9. weight: insulated boots (gloves) operation desk 12Kg
frequency voltage withstand test bed 60kg
