| 动力形式 | 喷涂机 |
|---|---|
| 功率 | 5500（w） |
| 规格 | 2040*820*950mm |
| 空气消耗量 | 0 |
| 喷射宽度 | 600mm |
| 喷嘴直径 | 8.10.12.14.17 |
| 适用范围 | 建筑室内外装修 |
| 压力比 | 30bar |
| 种类 | 空气喷涂机 |
| 重量 | 275（Kg） |
| 品牌 | 温工 |
| 型号 | JP70-P |
| 加工定制 | 是 |
| 最大输出压力 | 0（N/S） |
| 空载排量 | 0 |
| 最佳喷射距离 | 20m |

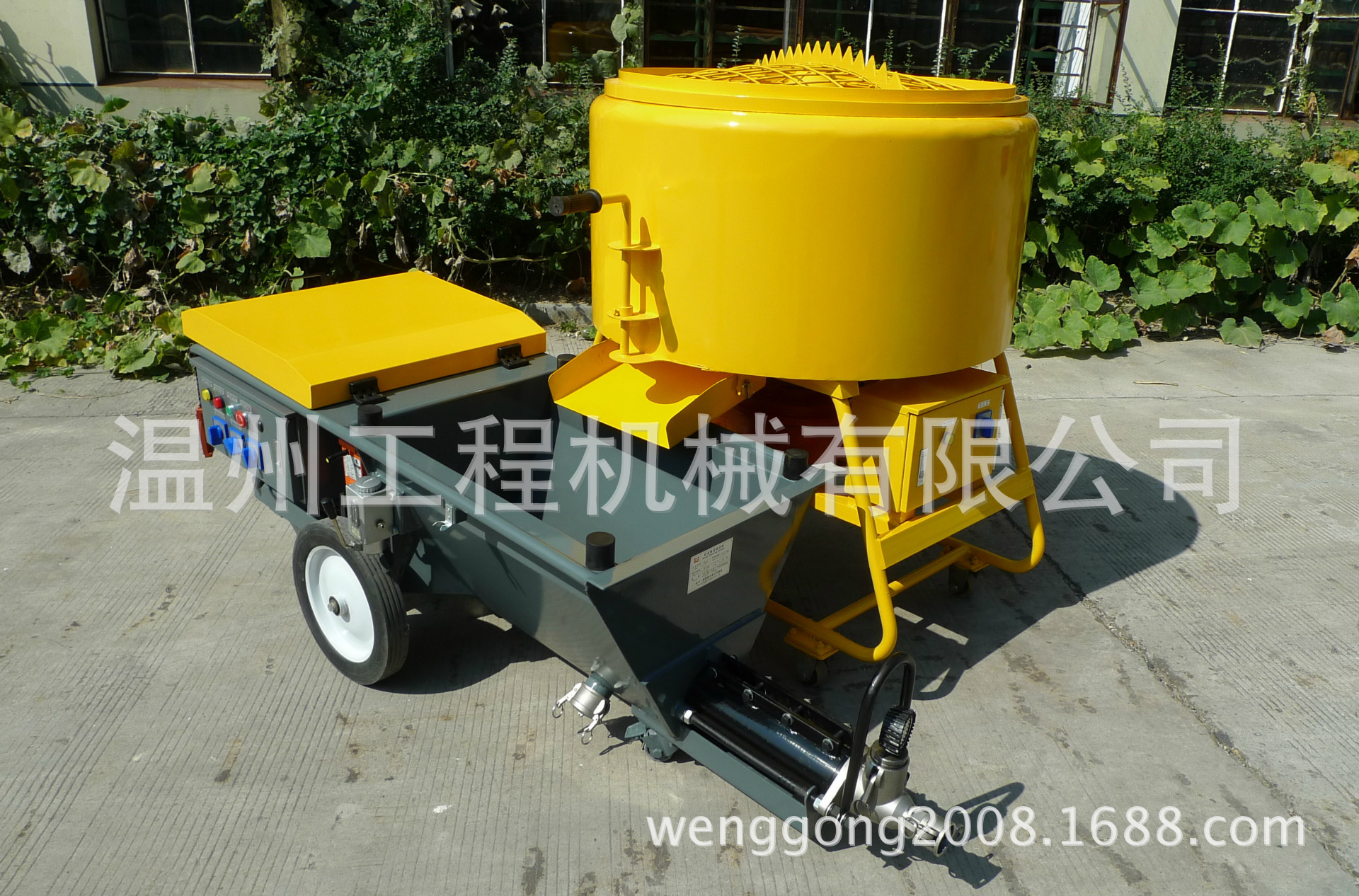

JP70-P是我公司引进意大利技术制造的一款多功能为一体的大排量砂浆喷涂机械，具备泵送、粘结、喷涂联合作业功能；适宜各种不同特性，不同用途的预拌干混砂浆施工；模块式结构，拆卸简单，移动方便，使用容易；具备选择控制调节功能，实现不同的压力、排量与喷涂速度；设有压力保护装置，满足远程控制操作需要。
JP70-P is multi-functional large output plastering machine introduced Italian technology. It has the combined functions of pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction. With modular structure, it's easy to move, dissemble and operate. With variable speed regulation, can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
标准配置 Standard equipment
泵设备 Pump equipment Wenggong D70
防震压力计总成 Shockproof pressure gage assembly
变速马达 Variable-speed motor

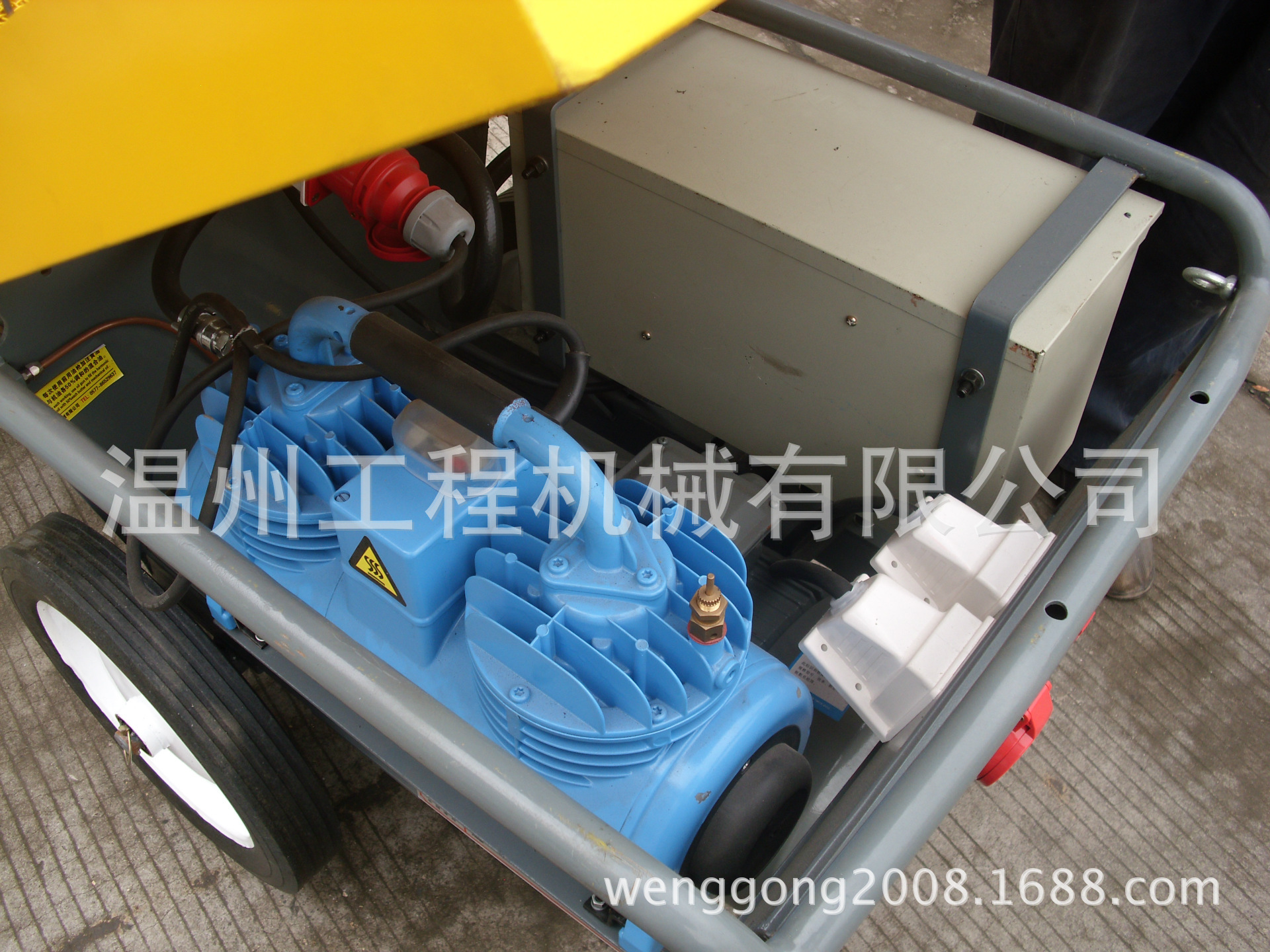

气泵集成 Air pump integration (配置 JP70-P Equipment)

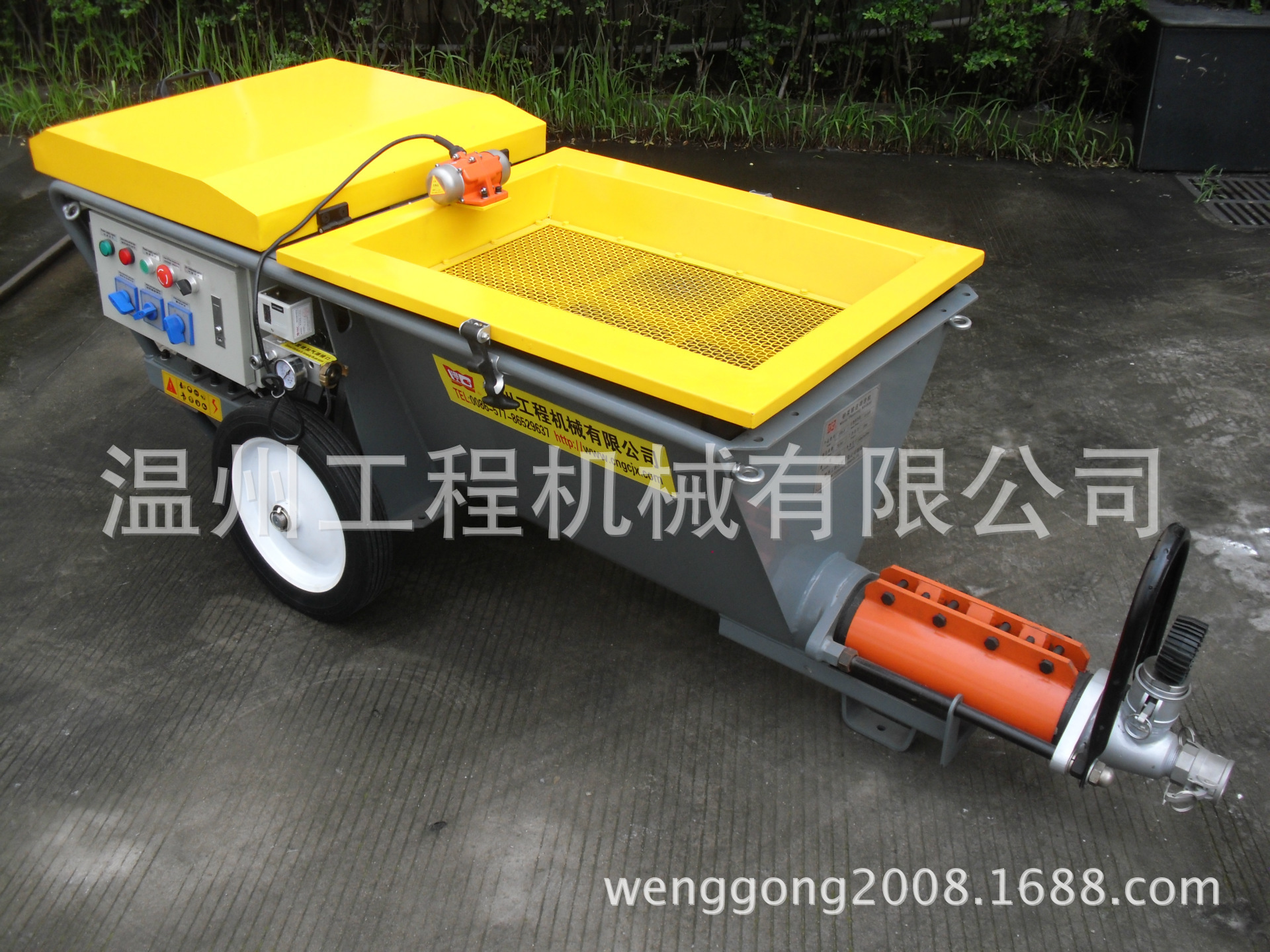

振动筛 Vibrating screen
整体式控制箱 Integral control box
带有气源支持喷枪Spraying gun with air support (配喷嘴 with spraying nozzle, 配置 JP70-P Equipment )
输浆管 Delivery hose GB/T3683 32-1-W.P.9Mpa或
GB/T3683 38-1-W.P.7Mpa Length:10m
带快速连接器空气管 Air tube with fast connector ID: ￠13 Length:10m (配置 JP70-P Equipment )
手动油泵 Manual oil pump Y6
工具箱Tool box
操作说明书 Operating instruction
JP70-P型砂浆喷涂机技术参数
Technical parameters of JP70 Mortar plastering machine
型号Model JP70-P
电源Supply power 400V 50Hz
电机功率Motor power 4/5.5kw
压缩机功率Compressor power 0.9kw
**大颗粒尺寸Maximum grain size 8mm
排量Output 50L/min
输送压力Delivery pressure 30bar
水平输送距离Horizontal delivery distance 0-60m
垂直输送距离Vertical delivery distance 0-30m
送料斗容量Hopper volume 120L
重量Net weight 275mm
外型尺寸Dimension (L×W×H) 2040*820*950mm
注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
