| 品牌 | JUNDI |
|---|---|
| 型号 | 76ZYT12-8008T |
| 额定功率 | 88.4 |
| 产品类型 | 有刷直流电动机 |
| 额定电压 | 12 |
| 额定电流 | 10.7 |
| 额定转速 | 3331 |
| 额定转矩 | 0.2538 |
| 外形尺寸 | 76 |
| 产品认证 | iso9001 |
| 适用范围 | 机械设备、减速装置、家用电器 |
| 效率 | 68.4 |
| |||||||||||||||||||

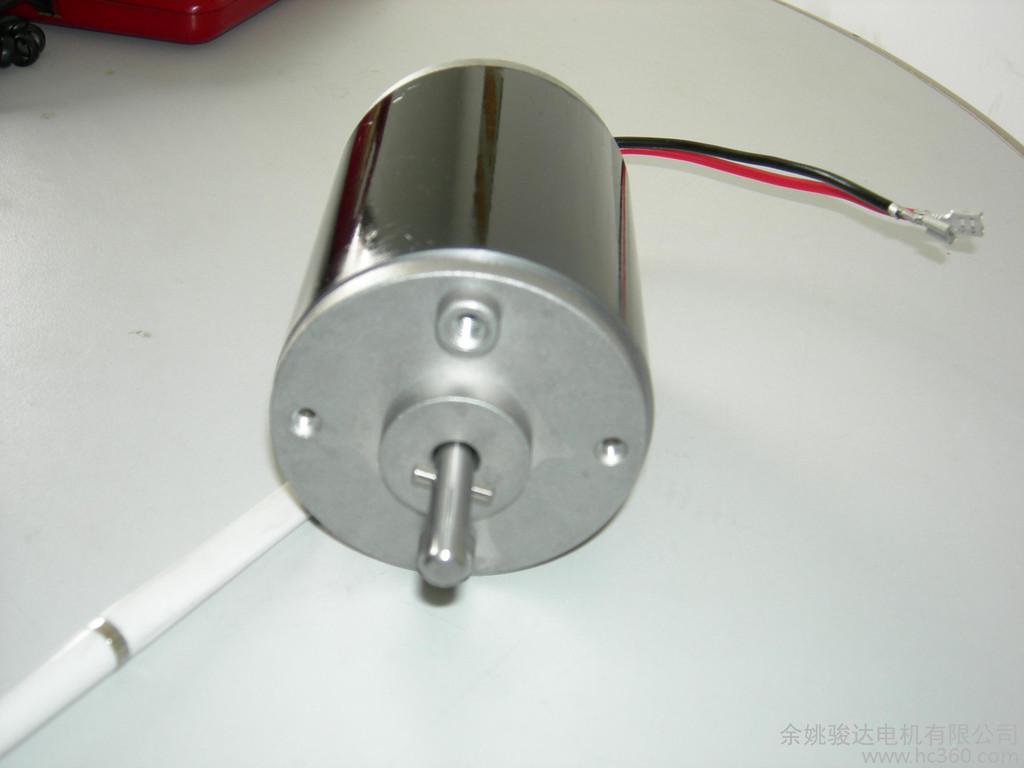

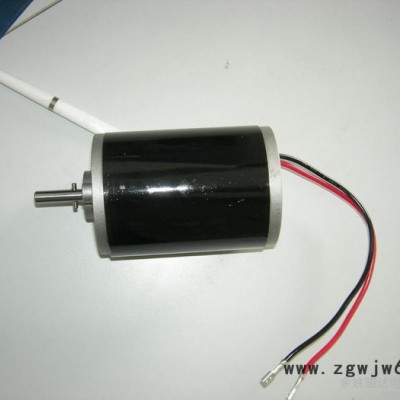

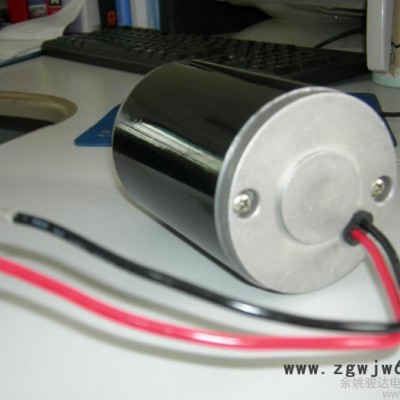

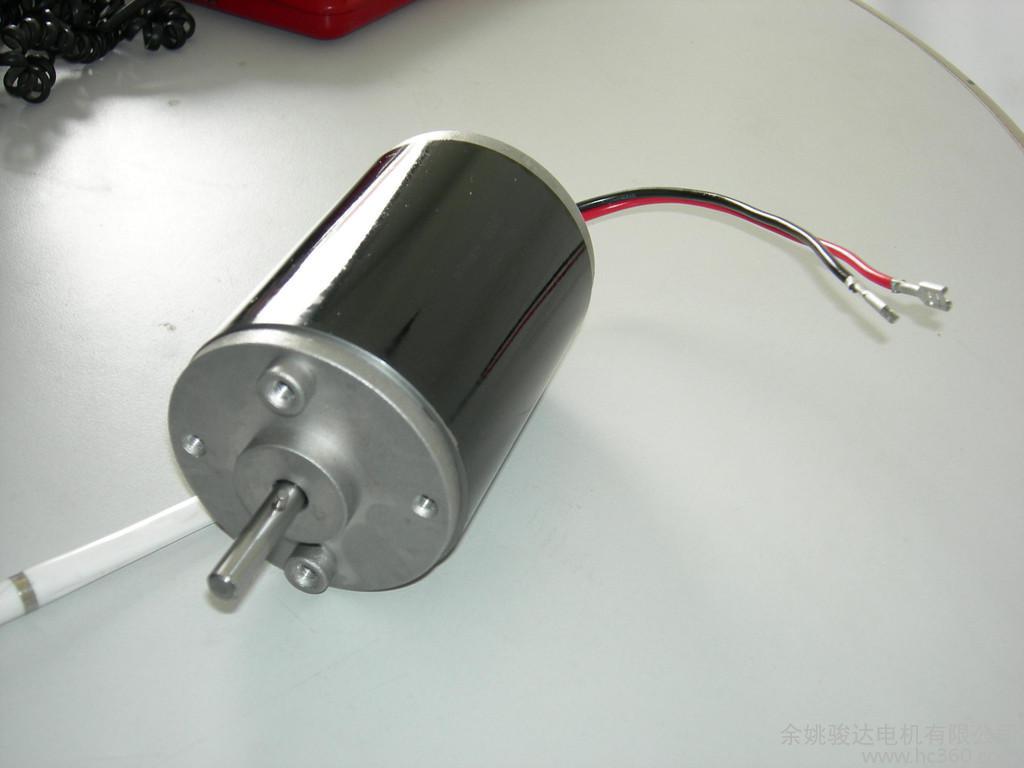

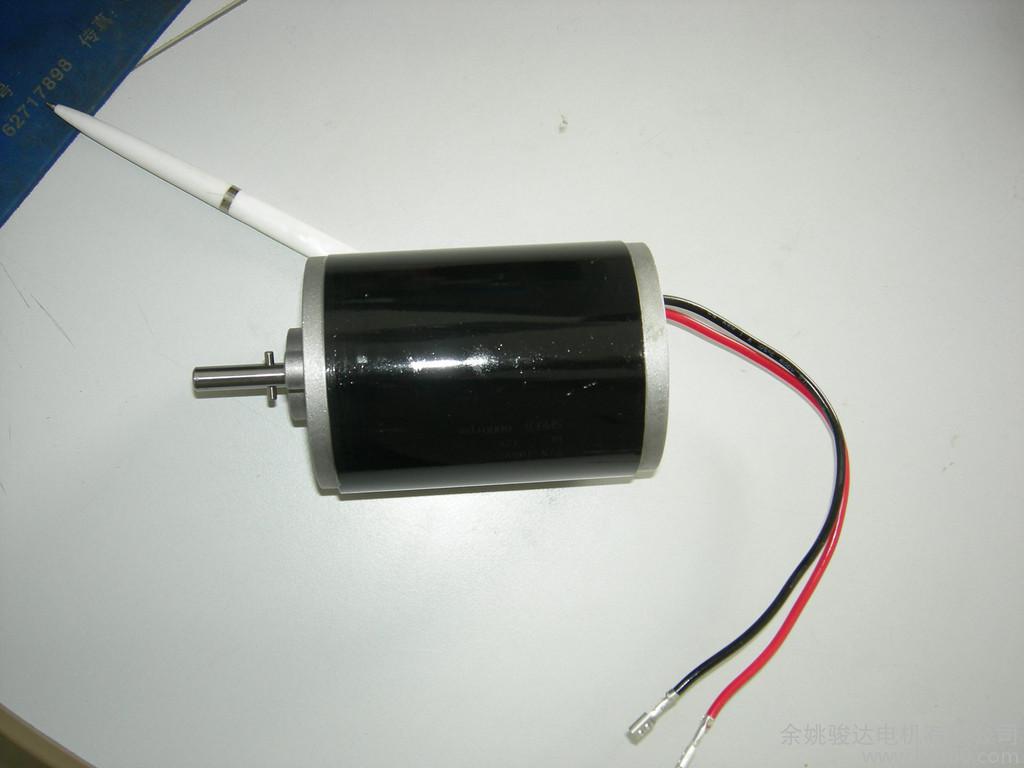

| 76mm永磁直流电动机 | |||||||||||||||||||
| Model | Rated Voltage | No Load | Rated | Motor Length | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Power | Efficiency | |||||||||||||
| Vdc | RPM | Amp | RPM | Amp | oz-in | mN.m | g.cm | W | % | mm | |||||||||
| JD-76ZYT12-8016B | 24 | 3400 | 0.8 | 2586 | 11.1 | 94.17 | 665.0 | 6781.0 | 180.00 | 67.1% | 115 | ||||||||
| JD-76ZYT12-7717 | 24 | 3400 | 0.8 | 2757 | 7.7 | 61.13 | 431.7 | 4402.0 | 125.36 | 67.1% | 110 | ||||||||
| JD-76ZYT12-9511 | 12 | 2900 | 1.2 | 2487 | 7.3 | 32.97 | 232.8 | 2373.9 | 60.56 | 68.9% | 112 | ||||||||
| JD-76ZYT12-8016D | 24 | 3300 | 0.8 | 2586 | 11.4 | 94.06 | 664.2 | 6772.8 | 179.86 | 67.3% | 120 | ||||||||
| JD-76ZYT12B-8008T | 12 | 4013 | 1.8 | 3526 | 8.0 | 24.22 | 171.0 | 1743.7 | 63.14 | 65.9% | 110 | ||||||||
| JD-76ZYT12B-8008T | 12 | 4013 | 1.8 | 3079 | 15.0 | 56.50 | 399.0 | 4068.6 | 128.64 | 71.5% | 110 | ||||||||
