步距角 | 0.9 |
---|---|
电感 | 联系客服 |
电流 | 联系客服 |
电压 | 220 |
电阻 | 2.5~30 |
环境温度 | -20~50 |
驱动电压 | 220 |
相电感 | 3.6~26 |
相电流 | 0.4~1.2 |
相数 | 2 |
重量 | 0.1~.0.21 |
品牌 | 美桑 |
型号 | 39HM |

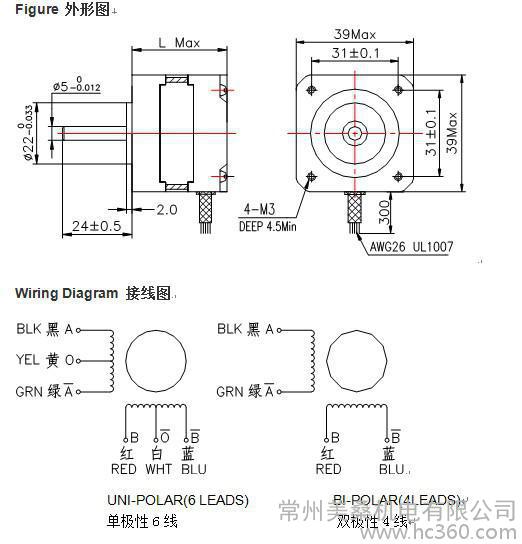

2-Phase Hybrid Stepping Motor Series 39HM
步距角 (NEMA 16) 0.9°
规格 Specifications of Series 39HM
Model 型号 | Holding Torque 静力矩 (N·cm±10%) | Current/Phase 相电流 (A) | Resistance/Phase 相电阻 (ohms±10%) | Inductance/Phase 相电感 (mH±20%) | Detent Torque (N·cm) | Rotor Inertia (g-cm 2 ) | Length (mm) | Weight (g) |
39HM2A20-044 | 8 | 0.42 | 20 | 16 | 0.5 | 15 | 20 | 100 |
39HM2A26-064 | 14 | 0.6 | 9 | 16 | 0.8 | 18 | 26 | 120 |
39HM2A34-064 | 16 | 0.6 | 9 | 15 | 1.1 | 23 | 34 | 160 |
39HM2A34-124 | 16 | 1.2 | 2.5 | 3.6 | 1.1 | 23 | 34 | 160 |
39HM2A34-046 | 12 | 0.4 | 30 | 16 | 1.1 | 23 | 34 | 160 |
39HM2A40-064 | 22 | 0.6 | 12 | 20 | 1.4 | 30 | 40 | 210 |
39HM2A40-124 | 22 | 1.2 | 3.2 | 5.5 | 1.4 | 30 | 40 | 210 |
39HM2A40-046 | 18 | 0.4 | 30 | 26 | 1.4 | 30 | 40 | 210 |
Motor are available with different winding and mechanical modification to meet specific applications. 电机可根据客户要求定制。
