电压 | 220 |
---|---|
驱动电压 | 220 |
电阻 | 联系客服 |
电流 | 联系客服 |
相电流 | 0.4~0.8 |
相电感 | 5~32 |
电感 | 联系客服 |
环境温度 | -20~50 |
重量 | 0.12~0.16 |
步距角 | 1.8 |
相数 | 2 |
品牌 | 美桑 |
型号 | 35HS |

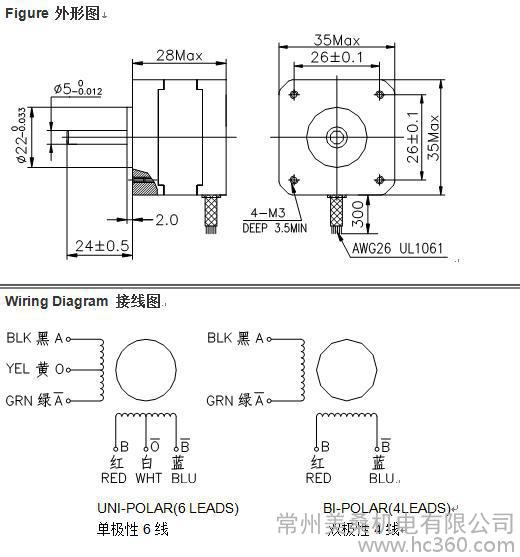

2-Phase Hybrid Stepping Motor Series 35HS
步距角 (NEMA 14) 1.8°
规格 Specifications of Series 35HS
Model 型号 | Holding Torque 静力矩 (N·cm±10%) | Current/Phase 相电流 (A) | Resistance/Phase 相电阻 (ohms±10%) | Inductance/Phase 相电感 (mH±20%) | Detent Torque (N·cm) | Rotor Inertia (g-cm 2 ) | Length (mm) | Weight (g) |
35HS2A28-054 | 12 | 0.46 | 20 | 14 | 0.8 | 11 | 28 | 120 |
35HS2A28-084 | 12 | 0.8 | 5.0 | 5.0 | 0.8 | 11 | 28 | 120 |
35HS2A28-046 | 9 | 0.4 | 30 | 11 | 0.8 | 11 | 28 | 120 |
35HS2A34-044 | 18 | 0.42 | 25 | 32 | 1.0 | 13 | 34 | 160 |
35HS2A34-084 | 18 | 0.8 | 6.5 | 9.8 | 1.0 | 13 | 34 | 160 |
35HS2A34-046 | 12 | 0.4 | 30 | 22 | 1.0 | 13 | 34 | 160 |
Motor are available with different winding and mechanical modification to meet specific applications. 电机可根据客户要求定制。
