| 加工定制 | 是 |
|---|---|
| 材质 | 尼龙66 |
| 规格 | PG螺纹 |
| 公称直径 | 13.5（mm） |
| 连接型式 | 螺纹连接 |
| 适用范围 | 电器、仪器仪表、线束 |
| 颜色 | 黑色和灰色 |
| 代理商 | CANWAY |
| 品牌 | Heyco |
| 型号 | M3216 |

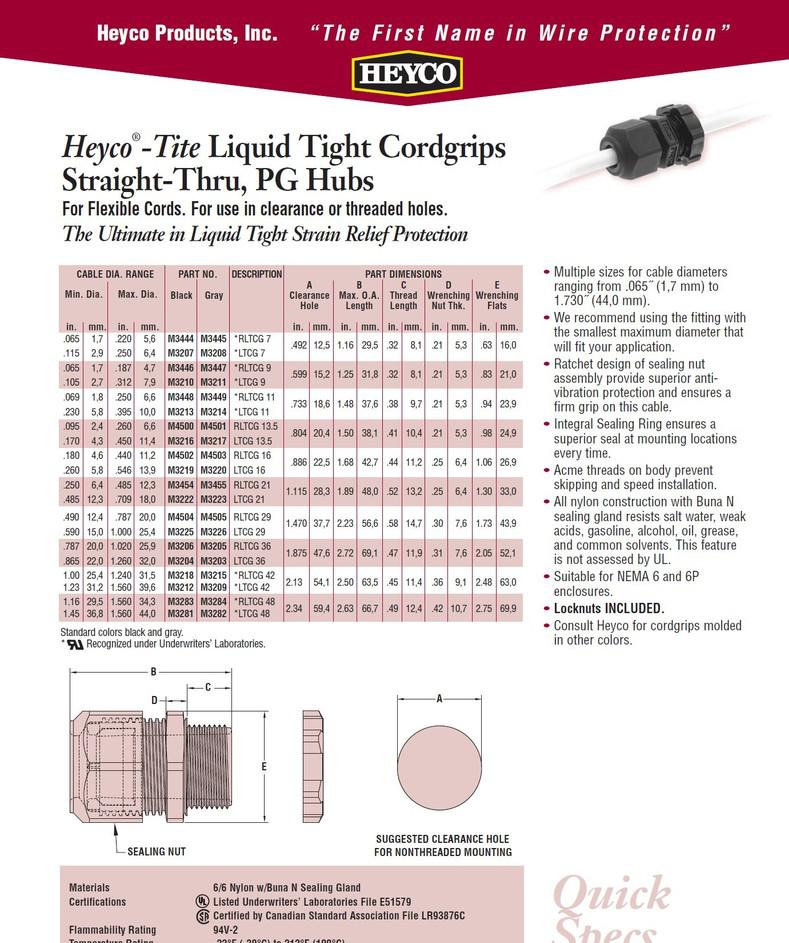

Straight-Thru, PG Hubs with Integral Sealing Ring
The Ultimate in Liquid Tight Strain Relief Protection
•Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
•Widest range of approved cable diameters.
•IP 68 rated.
•Approved for NEMA 6 and 6P applications.
•Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
•Acme threads on body prevent skipping and speed installation.
•All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
•Multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to 1.730" (44,0 mm).
•We recommend using the fitting with the smallest maximum diameter that will fit your application.
•Unassembled Nylon Locknuts INCLUDED.
•For Heyco Liquid Tight Threaded Plugs, click here.
•Consult Heyco for cordgrips molded in other colors.
