| 额定电流 | 5A |
|---|---|
| 额定电压 | 300V |
| 使用线径 | 22-18AWG |
| 间距 | 5.0mm |
| 安装 | 波峰焊 |
| 品牌 | 澳斯电子 |

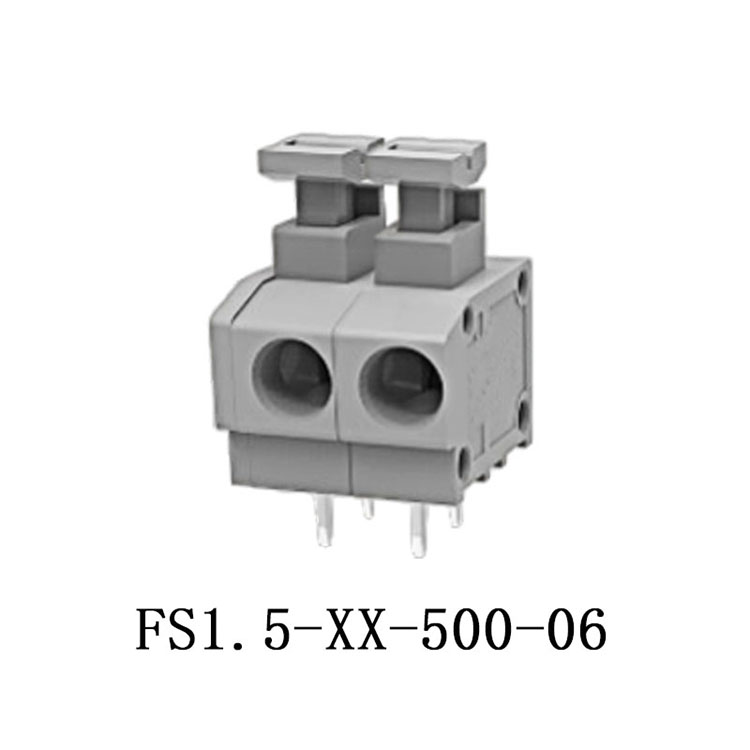

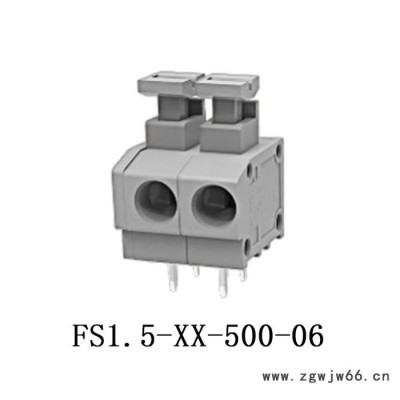

| 型号 | FS1.5-XX-500-06 |
| 技术数据-UL/CUL | |||
| 等级 Use Group | B | C | D |
| 等级 Use Group | 300 | - | 300 |
| 额定电流 Rated Current [A] | 5 | - | 5 |
| 接线范围 Wire Range [AWG] | 22~18 | ||
| 耐电压 Dielectric Voltage-Withstand | 1.6KV | ||
|
| |||
| 技术参数-IEC | |||
| 过电压类别 Overvoltage Category | III | III | II |
| 污染等级 Contamination Class | 3 | 2 | 2 |
| 额定电压 Rated Voltage [V] | 250 | 320 | 630 |
| 额定电流 Rated Current [A] | 17.5 | 17.5 | 17.5 |
| 额定冲击电压 Impulse withstand voltage [KV] | 4 | 4 | 4 |
| 导线截面积[硬/柔] Conductor cross section [mm2] | 0.5~1.5 0.75-1.5 | ||
|
| |||
| 材料 Material |
| ||
| 绝缘材料 Insulation Material | PA66 | ||
| 阻燃等级 Flame relardant rating | UL94-V0 | ||
| 导体材料 Conductor Material | Copper alloy | ||
| 导体表面镀层 Plating of conductor surface | Sn plated | ||
|
| |||
| 一般参数 Other Data | |||
| 间距/极数 Pitch/Poles [mm]/[P] | 5.0/1~30 | ||
| 剥线长度 Stripping Length [mm] | 9-10 | ||
| 螺丝/扭矩 Screw/Torque(Max)[N.m] | / | ||
| 工作温度 Operating temperature [℃] | -40~+105 | ||
| 焊锡温度 Soldering temperature | 250℃/5S | ||
| 引针尺寸 Pin dimensions [mm] | 0.8*0.4 | ||
| PCB板孔径 PCB Hole Diameter [mm] | ?1.2 | ||
