产品属性 | 直流无刷减速电机 |
---|---|
减速比 | 6 |
额定电压 | 48 |
额定功率 | 550 |
额定转速 | 4500 |
品牌 | 时代超群 |
本产品减速箱为定制,货期1周-2周!减速比可根据客户需要定做。
本公司专业生产减速箱~提供各种配套, 步进电机 伺服电机 无刷电机等配套减速箱。减速比根据客户需要定做。

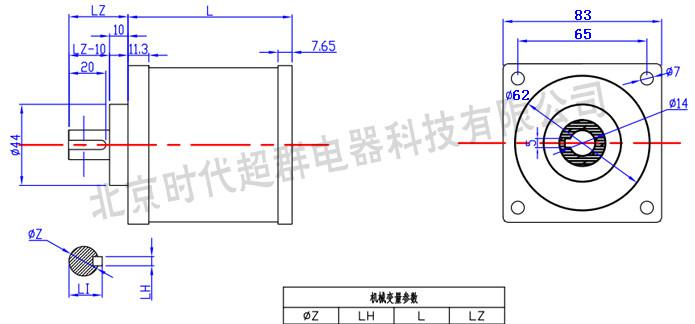

减速箱规格: 减速器长:74mm 法兰:83mm 止口:44mm 止口突出:9mm 出轴长:32mm
孔距:65mm 孔径是:7mm 键槽:20/5mm
减速比有:1:4 1:6 1:10 1:16 1:20 1:24 1:30 1:36 等现货减速比。
无刷电机型号 | 额定功率 (W) | 额定电压 (VDC) | 额定转速 (rpm) | 额定扭矩 (N.m) | 轴径 | 机身长 (mm) | 极数 |
80BL110-3145 | 550 | 310 | 4500 | 1.2 | 14 | 110 | 4 |
80BL130-330 | 350 | 36 | 3000 | 1.2 | 14 | 130 | 4 |
80BL145-440 | 550 | 48 | 4500 | 1.6 | 14 | 140 | 4 |
80BL145-3130 | 550 | 310 | 3000 | 1.8 | 14 | 145 | 4 |
80BL165-3115 | 550 | 310 | 1500 | 3.5 | 14 | 165 | 4 |
80BL165-3130 | 750 | 310 | 3000 | 2.5 | 14 | 165 | 4 |
以上型号都可配套。
具体定制详情请联系店主。
型号 Model | 额定电压 Rated Voltage (V) | 额定功率 Rated Power (W) | 额定转速 Rated Speed (rpm) | 额定转矩 Rated Torque (Nm) | 额定电流 Rated Current (A) | 空载电流 Non-Load Current (A) | 空载转速 Non-Load Speed (rpm) |
57BL55S02-212TF0 | 24 | 22 | 1200 | 0.15 | 1.2 | 0.1 | 3000 |
57BL55S06-230TF0 | 24 | 60 | 3000 | 0.18 | 3.2 | 0.1 | 4800 |
57BL75S10-225TF0 | 24 | 100 | 2500 | 0.4 | 5 | 0.2 | 3000 |
57BL75S10-230TF0 | 24 | 100 | 3000 | 0.4 | 5 | 0.2 | 4600 |
57BL75S15-336TF0 | 36 | 145 | 3600 | 0.4 | 5.3 | 0.2 | 4600 |
57BL95S06-210TF0 | 24 | 60 | 1000 | 0.6 | 3.3 | 0.2 | 1600 |
57BL95S18-230TF0 | 24 | 180 | 3000 | 0.6 | 8 | 0.3 | 4200 |
57BL90S10-320TF0 | 36 | 100 | 2000 | 0.6 | 0.5 | 6200 | |
57BL110S21-230TF0 | 24 | 210 | 3000 | 0.7 | 11 | 0.3 | 4600 |
60BL100S15-230TF0 | 24 | 150 | 3000 | 0.5 | 8 | 0.8 | 4000 |
60BL100S15-230TF0B | 24 | 150 | 3000 | 0.5 | 8 | 0.8 | 4000 |
60BL100S15-330TF0 | 36 | 150 | 3000 | 0.5 | 0.5 | 3500 | |
60BL120S25-430TF0 | 48 | 250 | 3000 | 0.75 | 7 | 0.5 | 3500 |
60BL120S25-3130TF0 | 310 | 250 | 3000 | 0.75 | 1.5 | 0.2 | 2500 |
80BL130S35-330TK0 | 36 | 350 | 3000 | 1.2 | 13 | 0.5 | 3800 |
80BL145S55-445TK0 | 48 | 550 | 4500 | 1.6 | 15 | 1.4 | 6000 |
80BL145S55-3130TK0 | 310 | 550 | 3000 | 1.6 | 2.4 | 0.6 | 5000 |
80BL148S75-3130TK0 | 310 | 750 | 3000 | 2.5 | 3.2 | 0.3 | 4200 |
80BL165S75-3115TK0 | 310 | 550 | 1500 | 3.5 | 3.2 | 0.3 | 2100 |
80BL89S40-445TK0 | 48 | 400 | 4500 | 0.8 | 11 | 1 | 5900 |
80BL89S50-445TK0 | 48 | 500 | 4500 | 1.2 | 15 | 1 | 5900 |
57BL122R18-332TF0 | 36 | 180 | 3200 | 0.54 | 6.5 | 0.5 | 4300 |
57BL110S30-3150TF0 | 310 | 300 | 5000 | 0.7 | 1.3 | 0.3 | 5000 |
